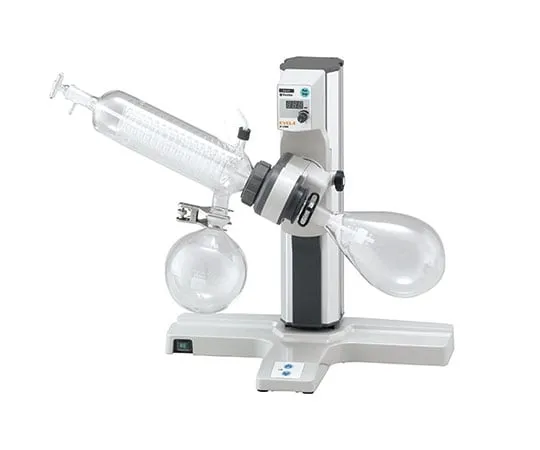

63-1394-95 Rotary Evaporator N-1210BS
Product Description
Product Model: 63-1394-95Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1394-95
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- This is an auto-jack type evaporator that can easily raise and lower the body by operating a key switch.
- Horizontal Cooler-Type Glass Set with High Efficiency and Recovery
- Newly developed Teflon (R) vacuum seal improves chemical resistance and durability.
Spec
- Speed range: 5 ~ 280 rpm
- Evaporating capacity: Max. 23 mL/min (JIS Standard 1L Flask, Water Evaporation)
- Rotation setting and display: Volume type and rotation speed digital display
- Jack function: electric lift (100 mm) + manual slide (130 mm)
- External input/output: Vacuum controller NVC -3000 type communication terminal, communication terminal for cooling water circulator
- Rotating motor: Stepping motor
- Glass set: Horizontal double corrugated tube (cooling area 0.146 m2), adapter, rotary joint (inner diameter 18 x 272 mm TS 29/38), sample flask (eggplant-type) 1 L (TS 29/38), receiving flask (round-bottom) 1 L (ball sliding S 35/20)
- Vacuum Seal: Teflon (R) Seal (Genuine parts: Teflon (R) Seal Product Code No. 244980 Price: 10.300 yen)
- Connection diameter: outside diameter of cooling water nozzle and suction nozzle: 10 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 670 x 359 x 520 (750) mm
- Weight: 14 kg
- Power input/voltage: 2 A, 200 VA/AC 100 ~ 230 V 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius and rated supply voltage.
- Code: 269640
