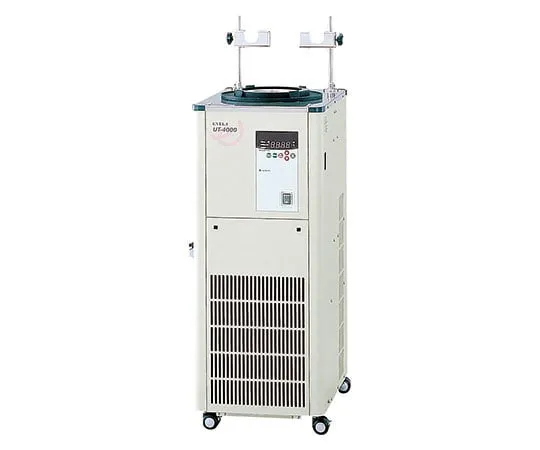

Spec

• Trapping system: Can body cooling system (Glass trap: optional, direct trap)
• Dehumidification capacity: Max. 1 kg (water system)
• Minimum temperature reached: -80 degrees C
• Display and display resolution: Trap temperature display (digital display), 5 degrees C
• Safety functions: Leakage/overcurrent breaker, high-pressure switch (refrigeration cycle), refrigerator overload relay, self-diagnostic function (Refrigerator malfunction, power failure alarm, sensor malfunction)
• Accessory functions: trap temperature display, defrost function, vacuum pump operation switch (vacuum pump control output), ***r adjustment mode (Display temperature correction and blackout recovery settings), trap tank saturation detection function (optional)
• Refrigerator: Air-cooled output 450 W x 2
• Refrigerant: HFC one-way R 404 A, two-way R 23 (HFC)
• Trap Tank Material: SUS 304
• Temperature sensor: T thermocouple
• Tank Inside Dimensions (mm)/Capacity: Inside Diameter 153 x 225/About 3.9 L
• Connection diameter: 17.3 mm for both intake and exhaust
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions: 330 (362) x 470 (482) x 835 (1009) mm/* Dimensions in () include projections.
• Weight: approximately 60 kg
• Power input/voltage: 13 A, 1.3 kVA/100 VAC 50/60 Hz
• *Performance is measured at an ambient temperature of 20 degrees Celsius and a rated supply voltage of 50 Hz. The minimum temperature reached indicates the temperature of the can wall inside the tank.
• *Glass trap or lid with nozzle is required for ***.
• Code: 216170
