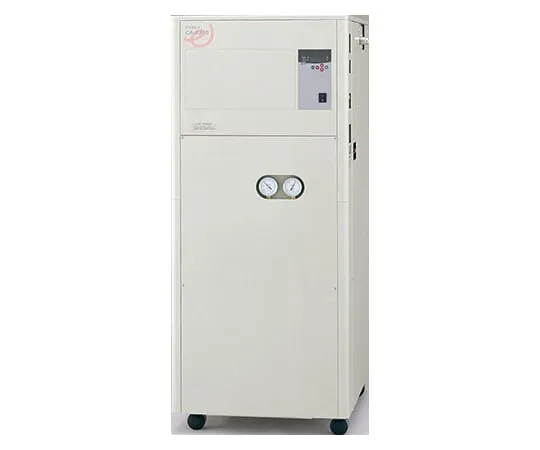

63-1394-65 Cooling water circulating device CA-3310
Product Description
Product Model: 63-1394-65Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1394-65
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- With an ambient temperature of 5~40°C, it is compatible with built-in ***. • With high power, it can operate even at production sites where air conditioning does not work in the summer.
- It can be ***d in a variety of applications, such as the cooling of large evaporators, the power supply of electron microscopes, the cooling of light sources, the cooling of heating parts of spectrophotometers, the secondary cooling of He (helium) compressors, etc., including the integration of analytical equipment and the integration into industrial machinery.
- It is equipped with a water-cooled refrigerator suitable for thermostatic rooms and clean rooms.
Spec
- Water-Cooled/Sealed Directional Circulation
- Temperature setting range and accuracy: 5 ~ 25 degrees C, +/- 2 degrees C
- Cooling capacity (at liquid temperature): 20 degrees C/5600 W (4816 kcal/h), 10 degrees C/4400 W (3784 kcal/h)
- External circulation capacity (50/60 Hz): maximum flow rate 37/44 L/min, maximum head 52/55 m (discharge pressure: 0.51/0.54 MPa)
- Temperature control: Capillary tube capacity switching control + refrigerator ON-OFF control
- Temperature sensor: thermistor
- Temperature setting and display: Sheet key input and digital display
- External input/output: recorder output terminal: 1 ~ 4 VDC, external temperature sensor terminal, alarm output terminal: non-voltage contact (a contact) output 250 VAC/30 VDC Max. 2 A
- Safety functions: Leakage/overcurrent breaker, temperature controller self-diagnosis function, sensor malfunction, refrigerator overload, refrigerator high-pressure switch, refrigerator protection timer
- Accessory features: flow control, relief valve
- Refrigerator/Refrigerant: Water-cooled output: 1.5 kW/R 407 C
- Circulation pump: Cascade pump output: 400 W
- Cooling Coils: Copper-Nickel-Plated
- High and Low Pressure Refrigerant Pressure Gauge: Standard equipment
- Discharge and return ports: Both discharge and return ports have a diameter of Rc 1/2.
- Water supply for chillers: 12 L/min (tap water 25 degrees C), 25 L/min (tower water 34 degrees C) Both inlet and outlet Rc 1/2
- Water Tank Material/Inside Size/Mass: SUS 304/390 W x 390 x 400/60 L (Liquid Amount 50 L)
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 600 (680) x 750 (825) x 1400 mm/* Dimensions in () include projections.
- Weight: approximately 162 kg
- Power input/voltage: 8 A, 2.8 kVA/AC 200 V 3-phase 50/60 Hz
- Power utility: 200 VAC 3-phase 20 A capacity
- *Power plug not included.
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Cooling capacity is +/- 10% of display capacity.
- *Pure water can not be ***d.
- Code: 199770
