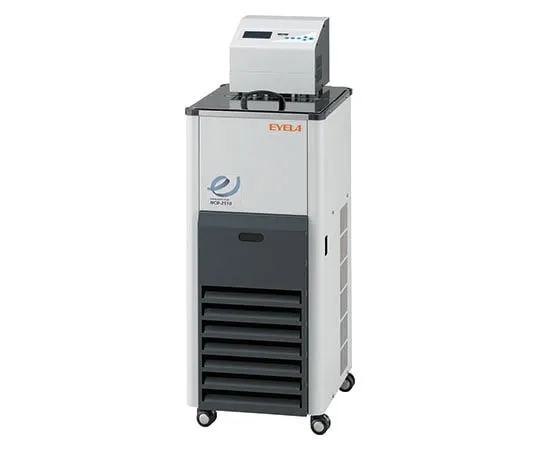

Spec

• Temperature adjustment range: - 40 ~ 50 degrees C
• Temperature control accuracy: below +/- 0.1 degrees C
• Cooling capacity (at 10 degrees C): 480 W (412 kcal/h)
• External circulation capacity (50/60 Hz): maximum flow rate 9.3/11 L/min, maximum head 4.3/6.3 m
• Temperature control: P.I.D control, contactless zero-cross output
• Safety functions: Upper and lower temperature anomaly detection, water level drop, overshoot, control sensor anomaly, high pressure switch, refrigerator overload relay, variable indep***ent overrise detector, leakage and overcurrent breaker
• Program functions: Auto start, Auto stop, Step mode (PC communication)
• Included features: Auto-tuning, temperature display correction, power outage return settings
• External input/output: PC communication (RS 232 C synchronous serial communication), external temperature sensor terminal, recorder output terminal, alarm output terminal: non-voltage (a contact) output AC 250 V/Max. 3 A
• Heater: 1 kW (SUS 316 L)
• Refrigerator/Refrigerant: Air-cooled output: 650 W/R 404 A
• Tank Stirring: Jet Stirring
• Cooling Coils: Copper-Nickel-Plated
• Temperature sensor: 4-wire platinum temperature-measuring resistor Pt 100 ohm
• External circulating nozzle: both discharge and return ports (Rc 3/8) 10.5 mm outer diameter hose port
• Recorder output range: 1 ~ 4 VDC (- 40 ~ 110 deg. C)
• Inside tank dimensions: 250 x 315 x 185 mm
• Internal volume: 12 L
• Water Tank/Tank Lid Material: SUS 304
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions: 360 (390) x 418 (530) x 1000 mm/* Dimensions in () include projections.
• Weight: 53 kg
• Power input/rated power: 19 A, 1.9 kVA AC 100 V 50/60 Hz
• Power plug not included.
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *Use a low-temperature heating medium when setting the liquid temperature below 10 degrees Celsius.
• *It can not be ***d in conjunction with the load (recirculating heat source) at liquid temperatures above 40 degrees Celsius.
• *Dep***ing on the conditions, the refrigerator is controlled by ON/OFF until the liquid temperature reaches around 40 ~ 60 degrees Celsius, and the temperature adjustment accuracy may be +/- 2 degrees Celsius.
• Code: 266700
