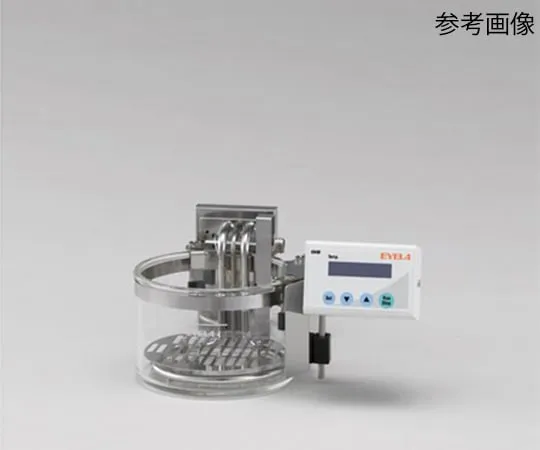

63-1394-34 Constant temperature oil tank OHB-3100G
Product Description
Product Model: 63-1394-34Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1394-34
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Oil bath that can be ***d in a wide range of applications
- The operation part can be removed and installed on the angle of the laboratory table.
- Adopting a digital setting and display (P.I.D control) temperature controller, it is easy to set and check the temperature and provides highly accurate temperature control. An external temperature sensor, sold separately, can be ***d to measure the temperature of the sample.
Spec
- Temperature adjustment range: room temperature + 5 ~ 200 degrees C
- Temperature control accuracy: +/- 0.3 degrees C (Setting: 200 degrees Celsius, stirring)
- Temperature control: P.I.D control with auto tuning
- Safety features: F***, overrise protection, self-diagnostic (upper limit limiter)
- Heater: 510 W
- Temperature sensor: Platinum temperature resistor Pt 100 ohm
- Water tank material: glass
- Inner tank dimensions: Inner diameter 200 x 190 mm
- Capacity: About 6.0 L
- Operating ambient temperature range: 5 ~ 35 degrees C
- External dimensions: 331 (439) x 301 x 245 mm/* Dimensions in () include projections.
- Weight: approximately 3.8 kg
- Power input: 5.6 A, 560 VA
- Power supply voltage: 100 VAC 50/60 Hz
- *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
- *Accessories: Shelf, Teflon (R) Stirrer (1 phi8 x 70 mm)
- Code: 270480
