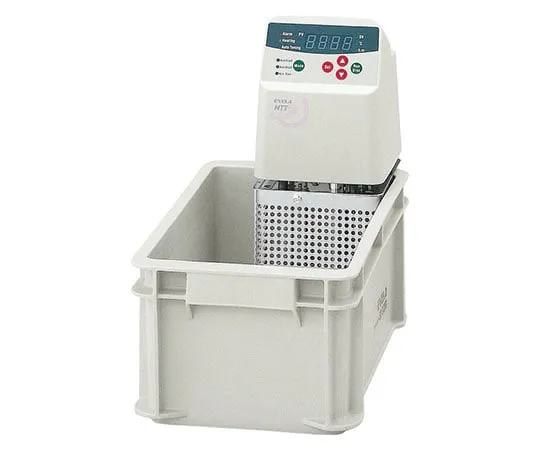

63-1394-31 Constant temperature water tank NTT-2200
Product Description
Product Model: 63-1394-31Product Brand: TOKYO RIKAKIKAI […]
Contact Us
Product Details
Product Model: 63-1394-31
Product Brand: TOKYO RIKAKIKAI CO., LTD.
Features
- Immersion type constant temperature water tank that can be ***d easily and widely
- This water tank is suitable for the case where there are a lot of experiments using outside circulation or a large capacity water tank.
- It has a stirring adjustment function. It is effective when you want to suppress waves.
- A variable indep***ent overrise detector is installed as standard. It is indep***ent of the control circuit, so it is safe in case of emergency.
- A handle is provided on the back of the unit. Easy to put on and take off, easy to carry.
Spec
- Temperature control range: room temperature + 5 ~ 80 degrees C (70 degrees C when using the attached bath)
- Temperature control accuracy: +/- 0.05 degrees C
- Temperature control: P.I.D control and SSR output
- Temperature setting and display: Sheet key input, minimum setting digit 0.1 degrees C, digital display
- Timer function: Auto start, Auto stop
- Safety features: Self-diagnostic function (Upper and lower temperature anomaly detection, heater disconnection and sensor anomaly detection), float type dry cooking prevention, indep***ent excessive rise prevention, circuit protector
- Included features: Alarm buzzer, auto tuning
- Heater: 1 kW (SUS 316 L water only)
- Indoor agitation: Variable jet agitation Maximum discharge flow rate 7 L/min, maximum head 1.2/1.5 m (50/60 Hz) When using external circulation nozzle: Maximum discharge flow rate 5 L/min, maximum head 1.2/1.5 m (50/60 Hz)
- Temperature sensor: thermistor
- Attached Water Tank Capacity/Material: 9L/Self-extinguishing PP Resin
- Minimum water level: 80 mm
- Tank internal and effective dimensions: 194 x 337 x 157 mm, 180 x 240 x 140 mm
- Operating ambient temperature range: 5 ~ 35 degrees C
- Protective cover: stainless steel plate
- External dimensions: 138 (220) x 150 (424) x 312 (335) mm/() are the values when set in the attached water tank.
- Weight: approximately 3.5 kg
- Power input/voltage: 11 A 1.1 kVA/100 VAC 50/60 Hz
- *Performance is room temperature 20 C, rated voltage, 50 Hz, 40 C setting, 7 L water, stirring: low, without lid.
- Code: 195420
