Spec

• Heating method: Plate heating method
• Temperature adjustment range: room temperature + 10 ~ 200 degrees C
• Temperature control accuracy: less than +/- 1 degree C
• Reached vacuum: 66.5 Pa (0.5 Torr) or less (when using oil rotary vacuum pump)
• Safety features: Temperature controller self-diagnostic function, f***, variable indep***ent overrise prevention

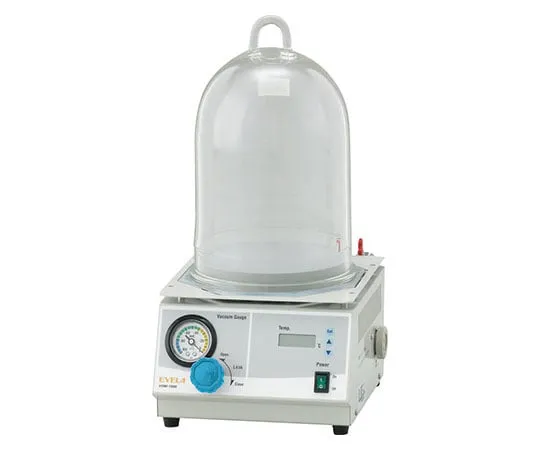

• Glass: Bell jar type (eye collared)
• Hot plate: Heat-resistant ceramic coating
• Nozzle diameter: both leak and vacuum openings, outer diameter 10.5 mm
• Interior dimensions (mm): 150 phi x 250 H
• Storage capacity: approximately 3 L
• Wetted part materials: SUS 304, Silicon, Viton (R), Teflon (R), Polypropylene, Ceramic, Brass
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (width x depth x height): 200 x 245 x 150 (405) mm/* Dimensions in () include projections.
• Weight (kg): approximately 6.2
• Power input/rated power: 3 A, 300 VA, 100 VAC 50/60 Hz
• Power cord: 1.8 m
• *Performance is measured at room temperature of 20 degrees Celsius, rated power supply voltage, 50 Hz, stirring in the tank at 800 rpm, with no load.
• *Temperature control accuracy is the surface temperature at the center of the hot plate.
• *The degree of vacuum reached dep***s on the vacuum pump ***d.
• *A vacuum pump is required for ***.
• *The vacuum pump is sold separately.
• *Select a vacuum pump with a displacement of 20 mL/min or more.
• Code: 247020
