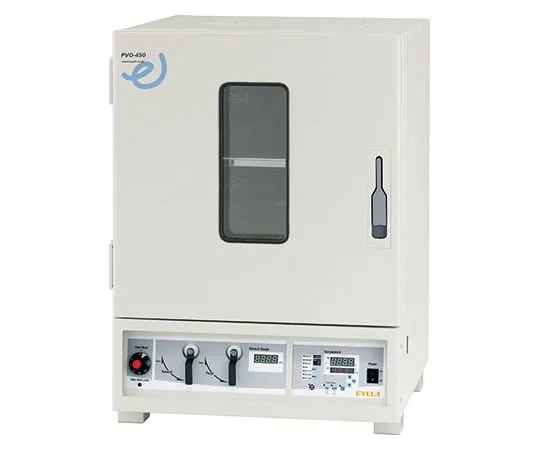

Spec

• Heat method: can body heating + shelf board warm air humidification
• Temperature adjustment range and accuracy: room temperature + 5 ~ 200 degrees C, + 0.4 degrees C (at 70 degrees C)
• Shelf temperature distribution accuracy: +/- 1 degrees C (at 70 degrees C. When 2 aluminum shelves and shelves are ***d)
• Reached vacuum: 133 Pa (1 Torr)
• Pressure measurement range: 0 ~ 1375 hPa
• Temperature control, setting, display: P.I.D control, SSR output, sheet key input, digital display
• Timer program function: Auto start, Auto stop, Auto start stop, Step (up to 8 steps), Repeat, 24 hour period
• Safety features: Door open, upper/lower temperature, sensor failure, hhi-t break, setting error, temperature gradient, power failure, earth leakage, overcurrent breaker, variable indep***ent overrise detector
• Heater: 1.2 kW
• Vacuum gauge: Digital vacuum gauge
• Temperature sensor: Pt sensor, 1 shelf for each, 2 total
• Interior dimensions (width x depth x height): 450 x 450 x 450 mm
• Storage capacity (L): 91
• Shelf Board Load Capacity/Material: Equal Distribution Max. 15 kg/Sheet/Aluminum
• Shelf Plates Included: 2
• Number of shelf pitch stages: 105 mm, 4 (fixed shelf position)
• Observation Window (mm): 150 W x 350 H (made of polycarbonate)
• Interior and Door Packing Materials: SUS 304, Silicon
• Sensor holes: 2 points on the top surface, phi 15 mm
• Connection diameter: Suction nozzle: outside diameter 21.7 mm hose mouth (inside Rc 1/4), Purge nozzle: outside diameter 16 mm hose mouth (inside G 1/4)
• Supply air for heating shelves: 0.3 ~ 0.9 MPa or more 30 NL/min or more (clean air)
• Air tube connection diameter: inner diameter 4 x outer diameter 6 mm for tube
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (width x depth x height): 655 x 675 x 900 mm
• Weight (kg): approximately 141
• Power input/rated power: 15 A, 1.5 kVA AC 100 V 50/60 Hz
• Power cord: 2.3 m
• Code: 248070
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz, no load and vacuum.
• *If you change the shelf board to SUS 304 or increase or decrease the number of shelves from the standard 2, the shelf temperature adjustment accuracy and shelf temperature distribution accuracy will be wider.
