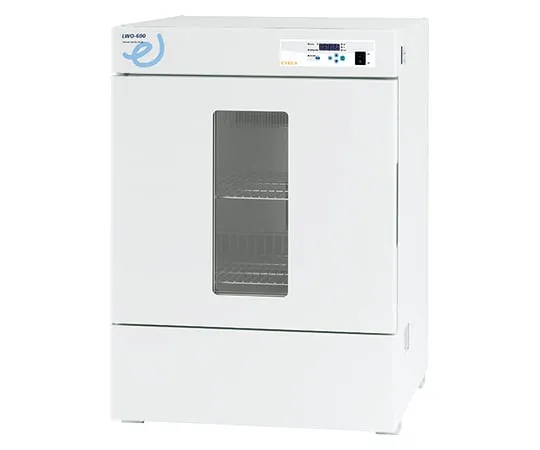

Spec

• Forced Convection System (Lower Blowout)
• Temperature adjustment range: 25 ~ 35 degrees C
• Temperature control accuracy: +/- 2 degrees C
• Temperature distribution accuracy: +/- 3 degrees C
• Temperature control method: ON-OFF control SSR output
• Setting and display: Sheet key input and digital display
• Timer function: Auto start
• Safety functions: (Sensor/Upper warning power outage) alarm, leakage/overcurrent breaker
• Temperature sensor: thermistor
• Refrigerator/Refrigerant: Air-cooled 120 W/R 134 a
• Interior dimensions Interior dimensions (width x depth x height): 600 x 500 x 500 mm
• Internal volume (L): about 150
• Shelf Board Load Capacity, Material: Uniform Distribution Max. 10 kg/Sheet, SUS 304
• Shelf Plates Included: 2
• Shelf Pitch/Number of Racks: 30 mm/12 Racks
• Observation Window (mm): 185 x 445
• Interior: SUS 304, SUS 430
• Operating ambient temperature range: 5 ~ 35 degrees C
• External dimensions (width x depth x height): 700 (712) x 730 (830) x 985 mm
• Weight (kg): approx. 85/* Dimensions in () include projections.
• Power input/rated power: 3.5 A, 350 VA/100 VAC 50/60 Hz
• Code: 247500
• *Performance is measured at room temperature of 20 degrees Celsius, rated supply voltage, 50 Hz and no load.
• *The set temperature may not be reached dep***ing on the room temperature.
