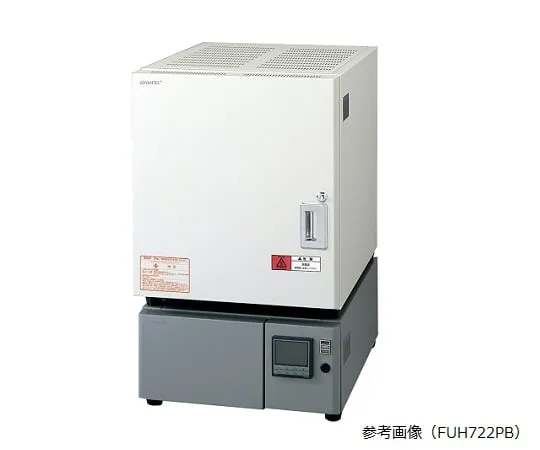

Spec

• Operating temperature range: 500 to 1,600 °C
• Maximum normal temperature: 1,500 °C
• Temperature Adjustment Precision: ± 2 °C at 1,500 °C
• Temperature distribution accuracy: ± 5 °C at 1,200 °C, to 1,500 °C
• Temperature rise time: about 60 minutes, from R.T. to 1,500 °C
• Ambient operating temperature: 5 °C, to 35 °C
• temperature controller: Microcomputer PID Control
• Operation form : Program Operation (16 patterns 16 steps, pattern linking possible)
• Temperature Sensor: B Thermocouple
• Heater: Molybdenum disilicide (Cantal (R) Super 1700)
• Heater capacity: 2.8 kW (4 pieces)
• Temperature recorder: recording width 100 mm 1 pen type chart speed 10 mm/h to 12,000 mm/h (40 stage switching)
• Furnace: Alumina Fiber 1600
• Safety device: Self-diagnostic function (Overheating, temperature sensor disconnection, heater disconnection, SCR error), overcurrent/earth leakage breaker
• Furnace inner size: W 150 mm x D 150 mm x H 150 mm (H 125 mm)
• Furnace external dimensions: W 500 mm x D 665 mm x H 585 mm
• Control Panel external dimensions: W 500 mm x D 640 mm x H 245 mm
• Furnace internal volume: about 3.4 L
• power supply (50Hz/60Hz): 200 VAC Single-phase 15 A
• Required power supply Equipment: 200 VAC Single-Phase 20 A
• Mass: about 105 kg
• Accessories: Hearth Plate 1 piece
