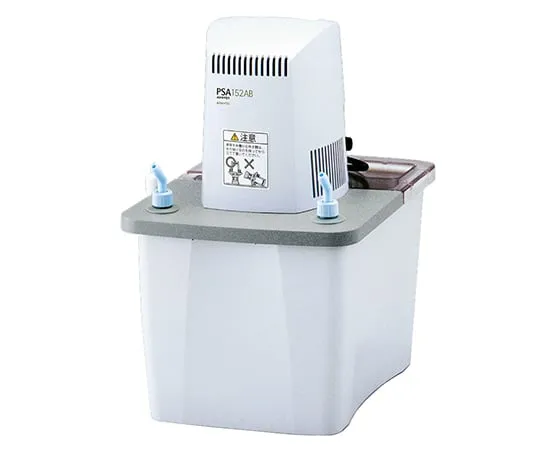

63-1239-57 Circulating aspirator PSA152AB
Product Description
Product Model: 63-1239-57Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1239-57
Product Brand: ADVANTEC
Features
- An aspirator with high displacement and stable suction.
- Equipped with 2 suction ports of 18 L/min, it can suck in a short time.
- The water reservoir can be removed.
Spec
- Degree of vacuum reached: Equivalent to water vapor pressure at operating temperature
- displacement (per 1 suction cup): 18 L/min (atmospheric pressure)
- Ambient operating temperature: 5 °C, to 35 °C
- Suction Port: 2 pieces
- Water Flow pumps: Metal Aspirators x 2 pieces
- Circulating pumps: 150 W
- Safety device: check valve, thermal protector
- external dimensions : W 261 mm x D 361 mm x H 406 mm
- Reservoir tank inner capacity: about 10 L
- Connector:
- Suction Port Outer Diameter/10 mm,
- Overflow Port Outer Diameter/17.5 mm
- power supply (50Hz/60Hz): AC100V 2.8 A
- Mass: about 6.5 kg
