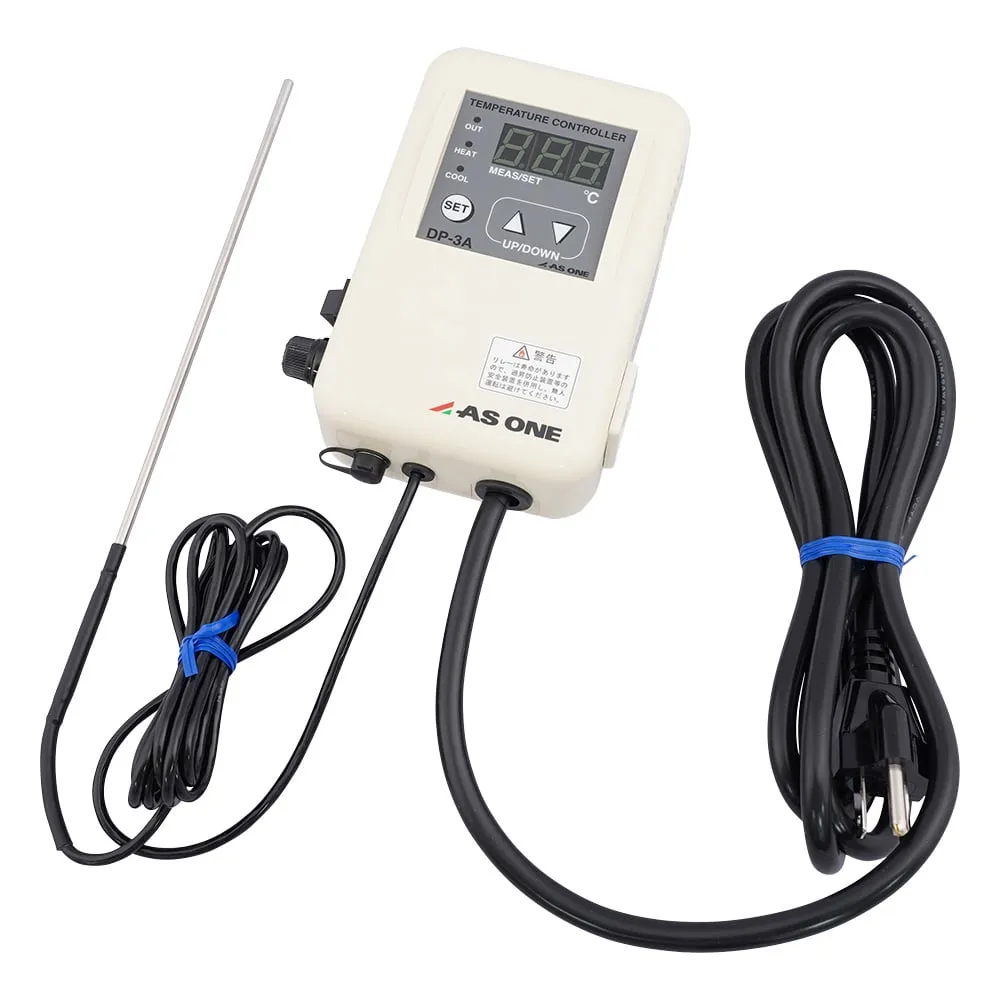

1-5238-41 Digital Pearl Thermo DP-3Aα
Product Description
Product Model: 1-5238-41Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5238-41
Product Brand: AS ONE Corporation
Features
- Since it can switch between forward and reverse operation, it can be ***d not only for heating devices such as heaters but also for controlling the temperature of cooling devices.
- It has a 4~20 mA analog data output (external leads are required).
Spec
- Temperature setting range (deg. C): 0 ~ 200
- Minimum Display Units (deg. C): 1
- Number of pieces: 1
- Indicated accuracy: +/- 3 degrees C (including sensor error) (external lead wire required)
- Control method: ON/OFF control
- Temperature sensor: Pt 100 ohm/phi 4 x 200 mm/cable length 2 m
- Output system: Voltage output by relay contact, from 3P outlet on the side of the body
- Output rating: 100 VAC 50/60 Hz MAX 12 A (resistive load)
- Safety features: Overcurrent protective f*** (15 A), Burn-out circuit when sensor fails
- Data output: 4 ~ 20 mA (fixed at -10 to + 240 degrees) Analog output
- Size: 95 x 150 x 47 mm (excluding protrusions)
- Power cord length: 2.0 m (3 P plug)
