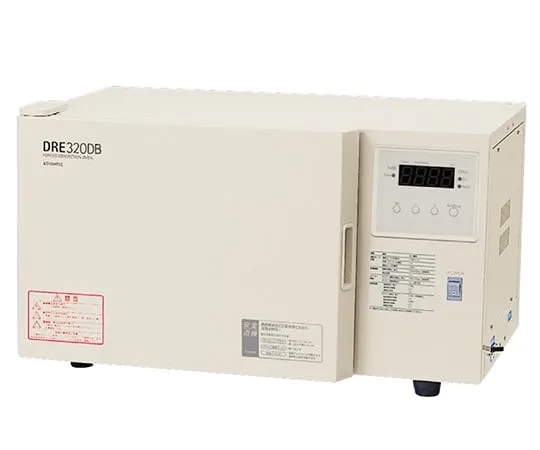

63-1238-79 Blower constant temperature dryer DRE320DB
Product Description
Product Model: 63-1238-79Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1238-79
Product Brand: ADVANTEC
Features
- Compact dryer capable of quickly and uniformly heating by blowing and circulating heated air in the horizontal direction.
- It is a compact dryer, so it can be stored in a limited space.
- Up to 3 units can be stacked. The internal volume is small, enabling rapid and accurate heating.
Spec
- convection formula : Blower type (Right Callout, Horizontal)
- Operating temperature range: 40 °C, to 200 °C
- Temperature Adjustment Precision: ± 0.3 °C at 200 °C
- Temperature distribution accuracy: ± 2 °C at 200 °C
- Temperature rise time: about 30 minutes, from R.T. to 200 °C
- Ambient operating temperature: 5 °C, to 35 °C
- temperature controller: Microcomputer PID Control (TC-EVI System)
- Operation Style: Standard Value Operation, Timer Operation (Auto Stop, Cooling) 1 minute, to 99 hours 59 minutes
- Temperature sensor: K class thermocouple
- Heater: Stainless Steel Sheath Heater
- Heater capacity: 600 W
- Blower Fan: Propeller Fan (Aluminum)
- Interior: SUS304
- Door Packing: Silicone Rubber * Change to Fluororubber
- Safety device: Self-diagnostic function (Overheat, temperature sensor error, control error, ambient temperature error), indep***ent overheat prevention device, control circuit protection f***, key lock function, overcurrent/leakage breaker
- inner dimension (Valid Dimensions): W 300 mm x D 300 mm x H 200 mm (H 177 mm)
- external dimensions : W 670 mm x D 440 mm x H 375 mm
- Internal Volume: Approximately 18 L
- number of shelves/pitch: 2 stages/90 mm (Fixed Shelf Support)
- Exhaust Port: φ 28 mm
- power supply (50Hz/60Hz): AC100V 7A
- Required power supply Equipment: AC100V 15 A
- Mass: about 25 kg
- Accessories: shelf board 1 piece, Fixed metal bracket 2 pieces (Mounting Screw 4 pieces)
