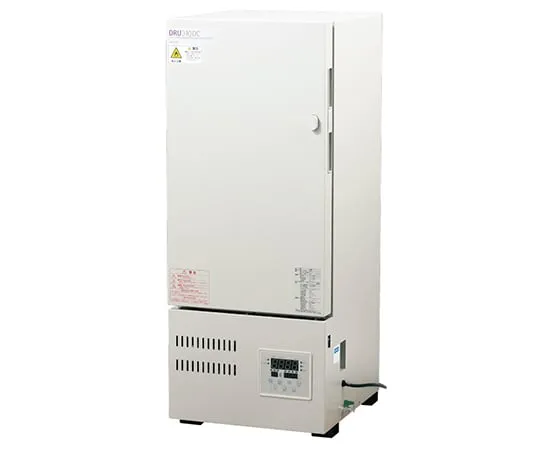

63-1238-66 Instrument dryer DRU310DC
Product Description
Product Model: 63-1238-66Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1238-66
Product Brand: ADVANTEC
Features
- Blow type dryer with drain receiving, ideal for drying glassware.
- Can also be ***d to dry pipettes using a basket for pipette drying (sold separately).
- Water drops falling from pipettes and glassware collect in the water receiving vat at the bottom of the cabinet and can be drained by opening the drain cock.
- The separately sold pipette drying basket allows the rising hot air to pass through the upright pipette, allowing for quick drying even with a long scalpel pipette.
Spec
- convection formula : Forced exhaust (Bottom Callout, Vertical)
- Operating temperature range: 40 °C, to 120 °C
- Temperature Adjustment Precision: ± 1 °C at 120 °C
- Temperature distribution accuracy: ± 3 °C at 120 °C
- Temperature rise time: about 30 minutes, from R.T. to 120 °C
- Ambient operating temperature: 5 °C, to 35 °C
- temperature controller: Microcomputer PID Control (TC-SVI System)
- Operation Style: Standard Value Operation, Program Operation (Up to 100 steps, cooling) 1 minute to 99 hours 59 minutes
- Temperature sensor: K class thermocouple
- Heater: Stainless Steel Sheath Heater
- Heater capacity: 1.4 kW
- Blower Fan: Sirocco Fan (Aluminum)
- Air filter: 80% dust-proof ratio
- Interior: SUS304
- Door Packing: Silicone Rubber * Change to Fluororubber
- Safety device: Self-diagnostic function (Overheating, temperature sensor error, heater disconnection, SSR short circuit, ambient temperature error), indep***ent overheat prevention device, control circuit protection f***, key lock function, overcurrent/leakage breaker
- inner dimension (Valid Dimensions): W 300 mm x D 300 mm x H 640 mm (H 528 mm)
- external dimensions : W 510 mm x D 500 mm x H 1,100 mm
- Internal Volume: Approximately 58 L
- number of shelves pitch : Passage 14 , Section 37.5 , mm
- power supply (50Hz/60Hz): AC100V 15 A
- Required power supply Equipment: AC100V 20 A
- Mass: about 55 kg
- Accessories: shelf board 2 pieces, Shelf Bracket 4 pieces, Fixed metal bracket 2 pieces for Floor (Mounting Screw 4 pieces)
