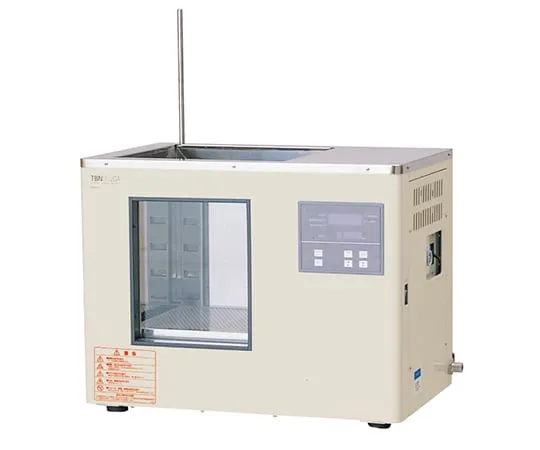

63-1238-25 Constant temperature water tank with Window (AC100V) TBN302DA
Product Description
Product Model: 63-1238-25Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1238-25
Product Brand: ADVANTEC
Features
- It is a thermostatic water tank with observation windows on the front and back of the water tank, making it easy to observe samples.
Spec
- Operating temperature range: R.T. + 7 °C, to 90 °C
- Temperature Adjustment Precision: ± 0.05 °C at Liquid Temperature 50 °C
- Temperature distribution accuracy: ± 0.1 °C at liquid temperature 50 °C
- Temperature rise time: about 120 minutes, from R.T. to 90 °C
- Ambient operating temperature: 5 °C, to 35 °C
- temperature controller: Microcomputer PID Control
- Operation Style: Standard Value Operation, Timer Operation (Auto start, Auto stop) 1 minute, to 99 hours 59 minutes
- Temperature Sensor: Platinum Temperature Measuring Resistor Pt 100 Ω
- Heater: SUS316L Pipe Heater
- Heater capacity: 1.4
- Agitation Method: Magnet pumps Jet Type
- Inner tank: SUS304
- Safety device: Self-diagnosis function (Overheat, Temperature Sensor Disconnection, Heater Disconnection, SSR Short Circuit, CPU Error), overheat prevention device, temperature f***, key lock function, overcurrent/leakage breaker
- tank inner size : W 302 mm x D 297 mm x H 355 mm
- external dimensions : W 580 mm x D 390 mm x H 435 mm
- tank inner capacity (when full of water): about 32 L
- Observation Window: W 200 mm x H 235 mm
- number of shelves pitch : 5 stages 48 mm
- power supply (50Hz/60Hz): AC100V 14.5 A
- Required power supply Equipment: AC100V 20 A
- Mass: about 25 kg
- Accessories: shelf board 1 piece, Shelf 4 pieces, strut 1 piece, Holder 1 piece, clamp 1 piece
