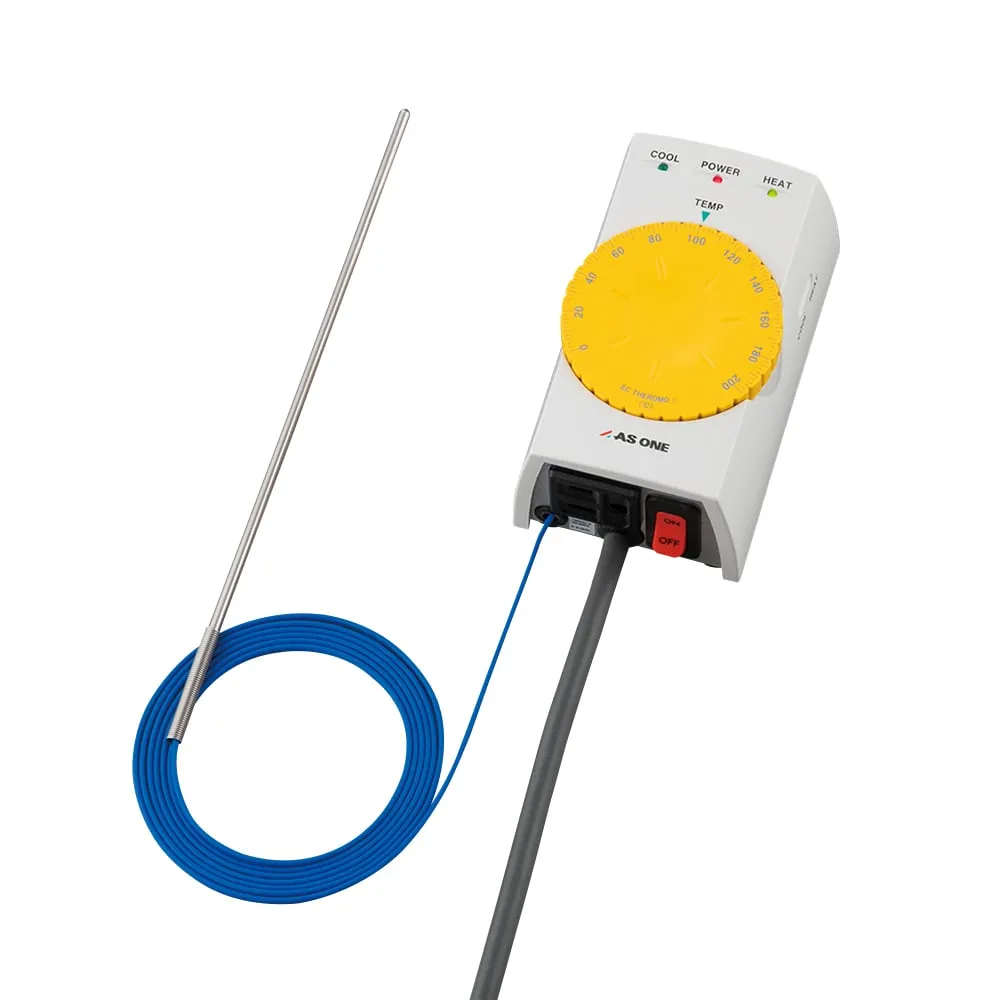

1-4599-12-22 EC Thermo Type 20~200°C with Inspection Document
Product Description
Product Model: 1-4599-12-22Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4599-12-22
Product Brand: AS ONE Corporation
Features
- Since the temperature control is microcomputer type proportional control, stable temperature control with less hunting than ON/OFF control is possible.
- Forward and reverse operation is possible by switching the switch on the side of the body, allowing temperature control of not only heating equipment but also cooling equipment such as coolers (induction load equipment cannot be connected).
Spec
- Temperature Setting Range (°C): 0~200
- Temperature Setting: Analog Scale (Type 1: Scale Width 1°C, Type 2: Scale Width 2°C)
- Temperature control system: Microcomputer type proportional control
- Sensors: K Thermocouples
- Sensor Size: Φ4 x 200 mm (Cord Length: 1.7 m)
- Connection Capacity: Resistive Load MAX12A
- safety devices: circuit breakers
- Power: 100 VAC 50/60Hz
- Body Size: 75 x 127 x 55 mm
