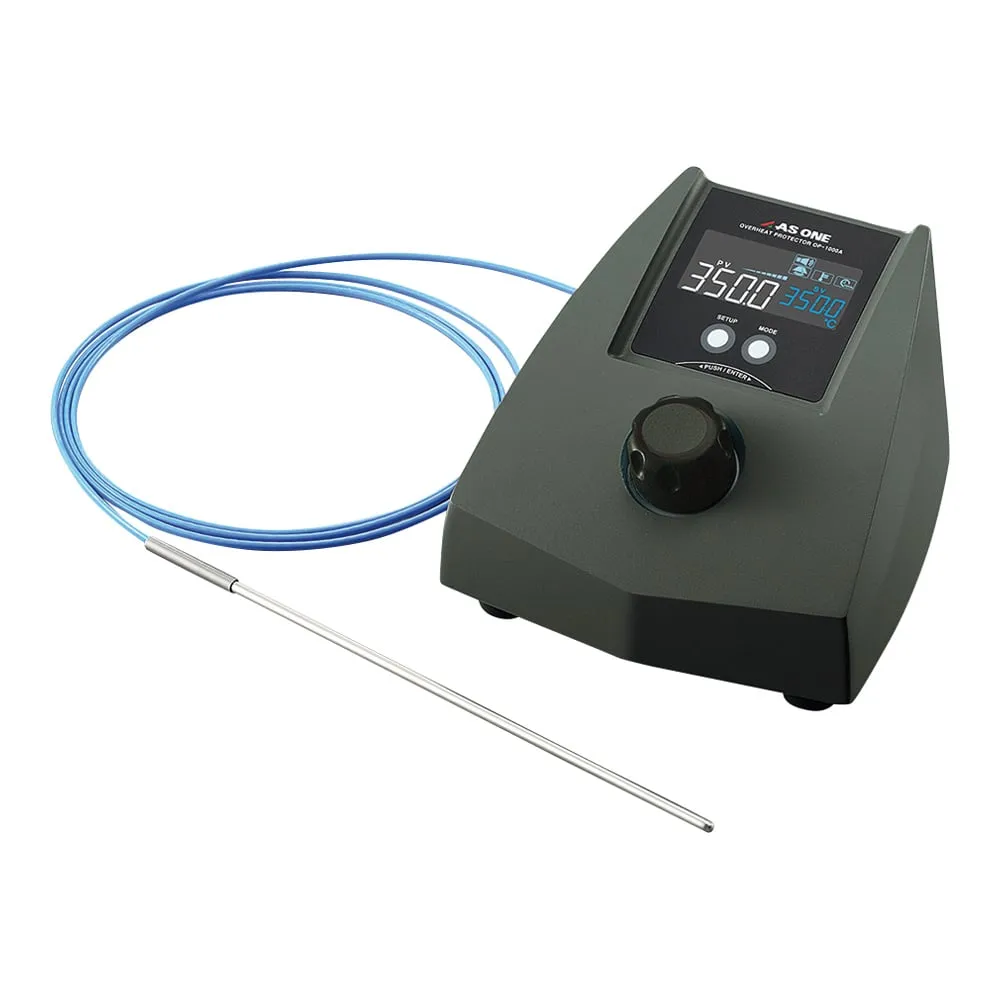

1-4598-21 Digital Excess Temperature Rise Prevention Device OP-1000A
Product Description
Product Model: 1-4598-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4598-21
Product Brand: AS ONE Corporation
Features
- The power is automatically turned off when the temperature exceeds the set temperature. (Reset means turning the power on again.).
- Uses jog dial system for quick and reliable temperature setting.
- The display screen is a backlit LCD screen with excellent visibility, and the set temperature and the measured temperature are displayed simultaneously.
Spec
- Setting range (°C): -20.0~500.0
- Minimum Display Unit (°C): 0.1
- Temperature display accuracy: ±2.6°C
- Sensors: K Thermocouples
- Connection Capacity: 100 VAC MAX12A
- Safety Device: Sensor Abnormality Detection, Circuit Protector
- Temperature setting method: LCD digital display (simultaneous display of setting and measuring temperature)
- Additional function: Setting value memory key lock
- Power: 100 VAC 50/60Hz
- Size: 147 x 150 x 106 mm
- Accessory: K Thermocouple x 1
- *The sewing machine will not recover even if the temperature drops after the power is turned off due to overtemperature.
- Difference from conventional part numbers: Main power switch (white → red) No other changes.
- Conventional Product: 1-4598-11 Digital Excess Temperature Rise Prevention Device
