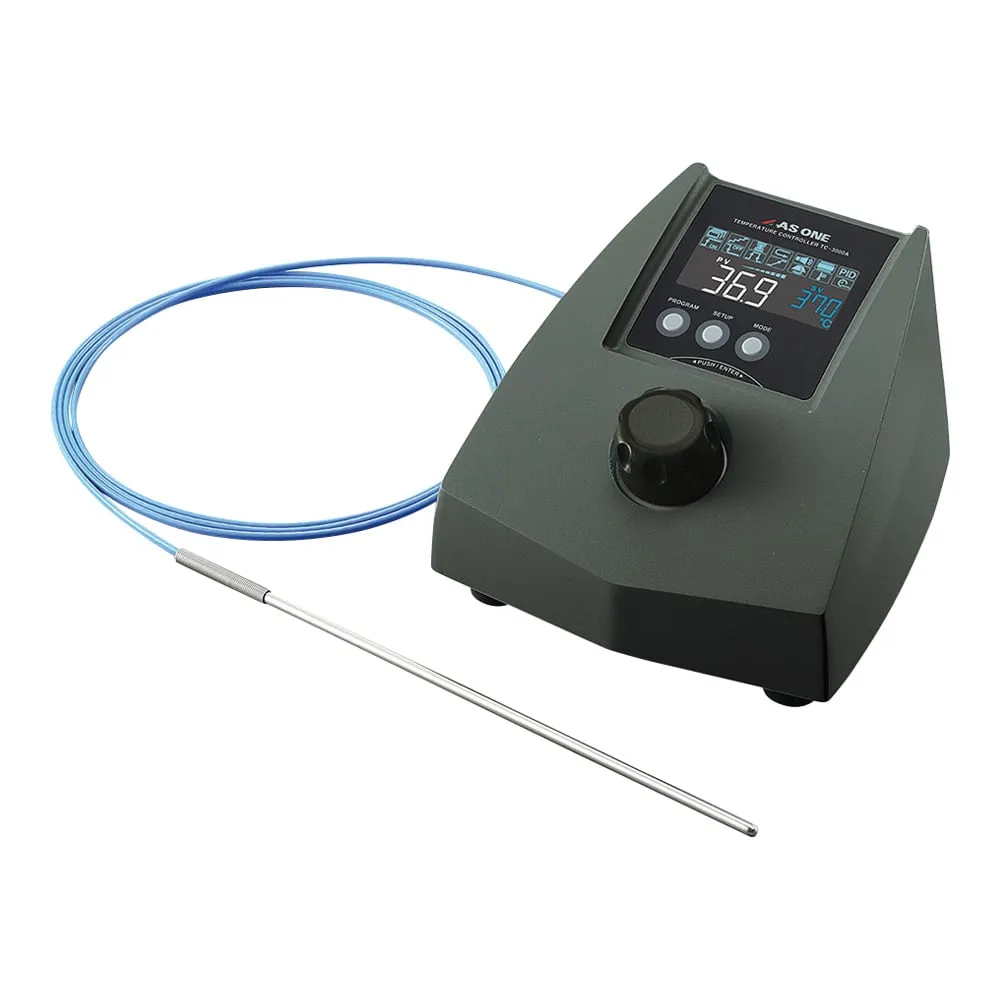

1-4597-31 Digital Temperature Controller TC-1000A
Product Description
Product Model: 1-4597-31Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4597-31
Product Brand: AS ONE Corporation
Features
- Compact body temperature regulator with full of functions
- Equipped with 4 timer functions (ON, OFF, ON/OFF, SET).
- Equipped with self-diagnostic functions such as heater abnormality detection and sensor abnormality detection.
- High-precision temperature control is achieved by microcomputer PID control.
Spec
- Temperature Setting Range (°C): -20.0~+500.0
- Minimum display unit (°C): 0.1
- Temperature display accuracy: F.S. ±0.5%
- Temperature control system: microcomputer PID control
- Temperature Display Method: LCD Digital Display (Setting/Measurement Temperature Simultaneous Display/Heater Output Bar Graph Display)
- Sensor: K Thermocouple (Standard) -20.0~+500.0°C, Pt100Ω (Optional) -199.9~+199.9°C
- Safety Functions: Self-Diagnosis Function (Upper and Lower Limit Temperature Abnormality Detection, Heater Abnormality Detection, Sensor Abnormality Detection), Circuit Protector
- additional function
- Timer Function: Setting Range/1 Minute ~99 Hours 59 Minutes (1 Minute Increments) • Set Value Memory Function • Key Lock Function • Auto Tuning Function
- Power: 100 VAC 50/60Hz Control Output (3P 100 VAC MAX12A)
- Size: 147 x 150 x 112 mm
- Accessory: K Thermocouple (φ4.0 x 200 mm) x 1
- Difference from conventional part numbers: Main power switch (white → red) No other changes.
- Conventional Product: 1-4597-21 Digital Temperature Regulator
