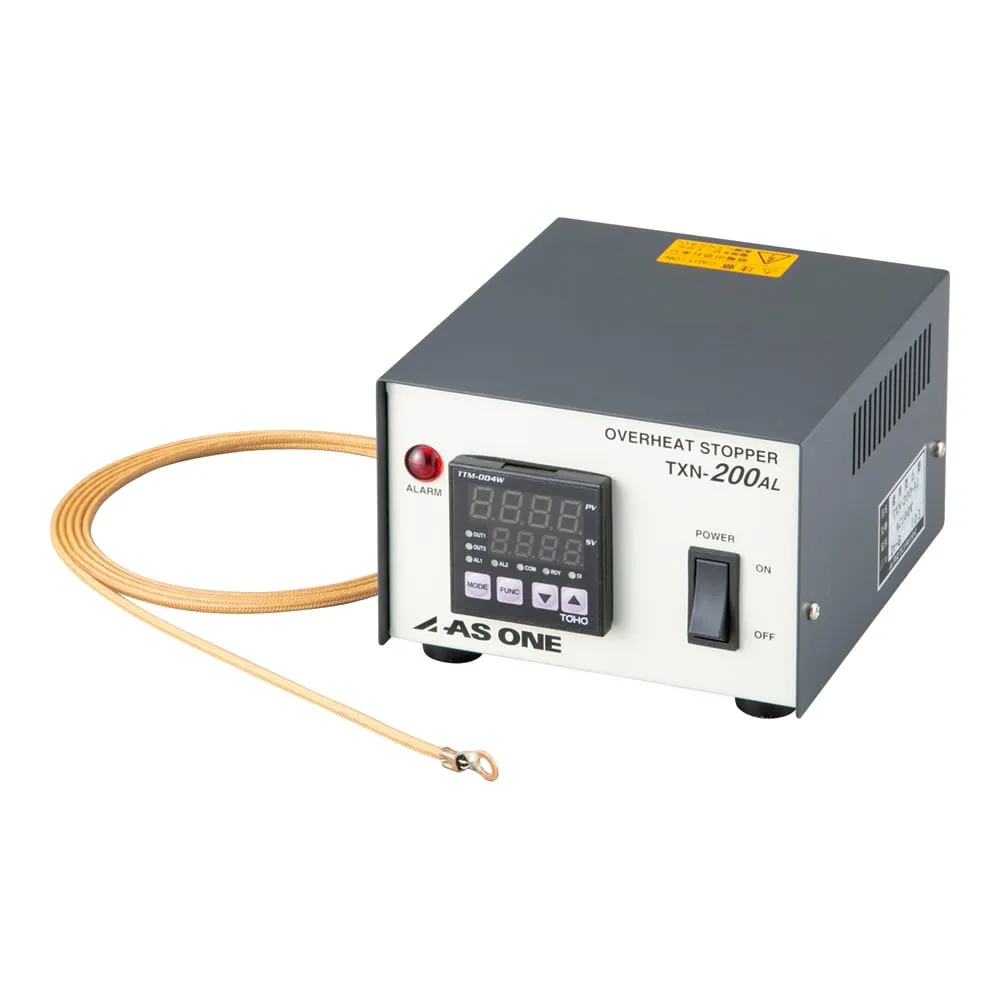

1-4112-01-57 Overheat Protector with Chinese Calibration Certificate TXN-200AL
Product Description
Product Model: 1-4112-01-57Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4112-01-57
Product Brand: AS ONE Corporation
Features
- The power is automatically turned off when the temperature rises above the set temperature, and does not return to normal even when the temperature drops.
- Comes with a bolt-on type temperature sensor that is convenient for attaching to objects.
Spec
- Setting range: 0 ~ 400 degrees Celsius
- Minimum display unit: 1 deg.
- Setting accuracy: +/- 0.5%
- Alarm setting range: 0 ~ 400 degrees C
- Alarm description: When the alarm is raised above the set temperature, turn the alarm lamp on and turn off the internal relay (reset is performed by the power switch).
- Power supply: 100 VAC 50/60 Hz (shared with main unit and load)
- Connection capacity: AC 100 VmAX 15 A resistance load (shared with main unit power supply)
- External dimensions: 130 x 145 x 85 mm (excluding protrusions)
- Sensor cord length: 2.0 m (K thermocouple)
- Power cord length: 2 m (3P plug)
- Sensor specifications: Silica glass coating (400 degrees C heat resistant)
- Calibration points are 25 degrees Celsius and 2 points of 80 degrees Celsius. If you would like additional points, please contact us separately.
