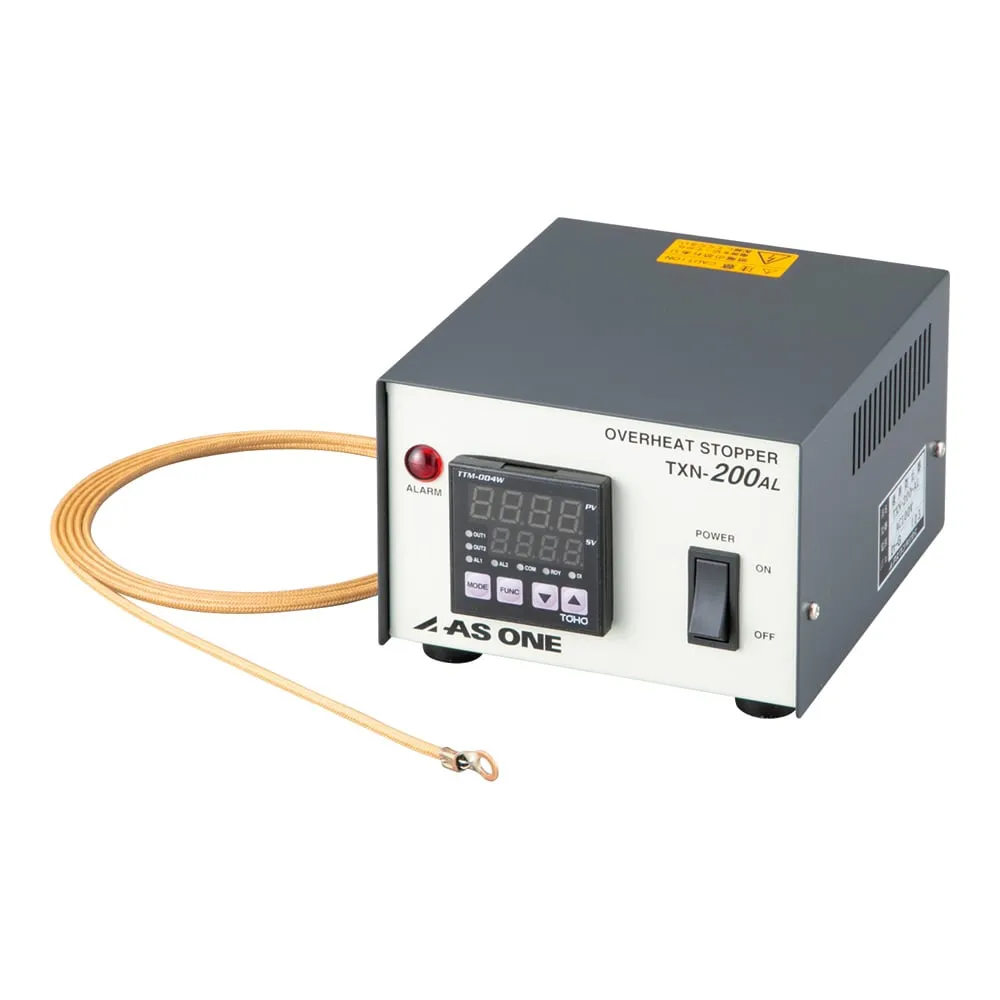

1-4112-01-20 OverTemperature Control Device With Calibration Certificate TXN-200AL
Product Description
Product Model: 1-4112-01-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-4112-01-20
Product Brand: AS ONE Corporation
Features
- When the temperature is higher than the set temperature, the power is automatically turned off and will not be restored when the temperature drops.
- Comes with a bolt-on temperature sensor for convenient attachment to objects.
Spec
- Model number: TXN -200 AL
- Setting range: 0 to 400 ℃
- Minimum display unit: 1 ℃
- Setting precision: ±0.5%
- Alarm setting range: 0 to 400 ℃
- Alarm content: Internal relay off with alarm lamp on when alarm temperature rises above set temperature (Reset with power supply switch)
- Power supply : AC100V 50/60Hz (Shared with the main unit and load)
- Connected capacity: AC100V MAX 15 A resistive load (Shared with the main power supply)
- Extracorporeal Dimensions: 130 x 145 x 85mm (excluding projections)
- Sensor code length: 2.0 m (K class thermocouple)
- Power cord length: 2m (3P plug)
- Sensor specification: Silica glass coating (Heat resistance at 400 ℃)
- Accessories: Calibration certificates
- *Products with calibration certificate is a service where equipment is calibrated and calibration certificate is issued at the time of shipment.
- RoHS3 (EU)2015/863 Certificates can be issued
