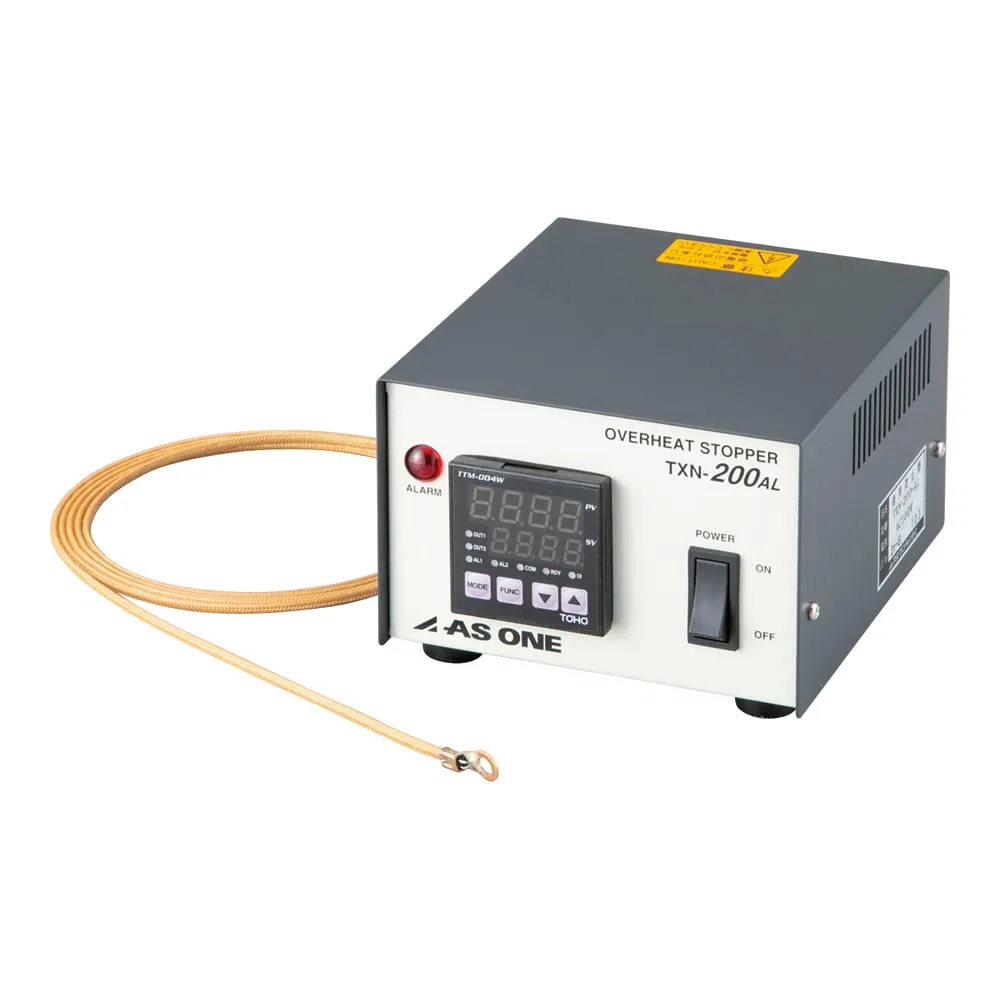

1-4112-01 Overtemperature Control Device TXN-200AL
Product Description
Product Model: 1-4112-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-4112-01
Product Brand: AS ONE Corporation
Features
- The power is automatically turned off when the temperature rises above the set temperature, and does not return to normal even when the temperature drops.
- Comes with a bolt-on type temperature sensor that is convenient for attaching to objects.
Spec
- Model number: TXN-200AL
- Settings range: 0 - 400℃
- Minimum display unit: 1℃
- Setting accuracy: +/- 0.5%
- Alarm setting range: 0 - 400℃
- Alarm description: Internal relay OFF with alarm lamp lighting when rising more than settings temperature (reset is carried out by power switch)
- Power supply: AC100V 50/60Hz (body, load shared)
- Connection capacity: AC100V MAX 15A resistance load (body power shared)
- External body dimension: 130 x 145 x 85mm (excluding projections)
- Sensor cord length: 2.0m (K class thermocouple)
- Power cord length: 2m (3P plug)
- Sensor specification: Silica glass coated (400℃ heat resistance)
- RoHS3 (EU)2015/863 Certificates can be issued
