Spec

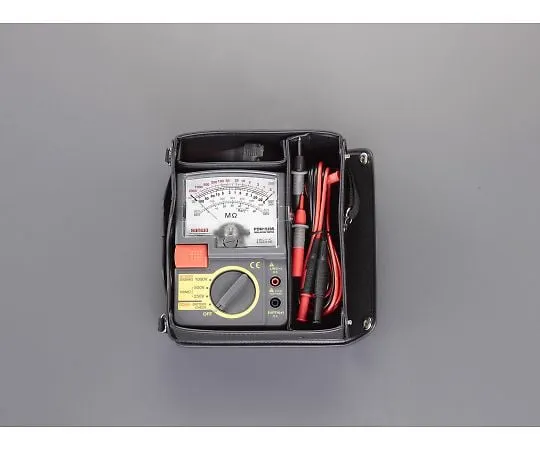

• Analog Insulation Resistance Tester based on JIS standard.
• This instrument can be measured insulation resistance or Voltage(DC/AC) of electric lines and electric equipment at low valtage(600V or less) electrical circuit.
• Easy-to-read three-range type with minimal number of scale marks.
• One-shot or continuous measurement push switch
• DCV measurement range(DC60V)
• Auto discharge function
• Inner battery check range
• Shoulder Strap
• AC rectifier form …Half-wave rectification(Mean value indication rms value converted)
• Meter type …Internal magnet, Taut-band meter(48μA)
• Battery consumption …Checked by BATTERY CHECK range
• Accuracy assurance temperature / humidity …23±5℃ / 75%RH or below No condensation
• Operating temperature / humidity …0℃～43℃ / 80%RH or below No condensation
• Storage temperature / humidity …-10℃～50℃ / 70%RH or below No condensation
• Operating environment…Altitude 2000m or less, environmental pollution degree II
• Safetystandards …IEC61010-1 CAT.III 600V
• Scale (MΩ)…0.5～2～1000～2000MΩ 1000V 0.02～0.1～50～100MΩ 500V/250V Accuracy： ±5% of full scale (1st effective measurement range ：2～1000、0.1～50) ±10% of full scale (2nd effective measurement range ：Except the above 1st effective measurement range)
• ACV…600V Accuracy：±5% of full scale (50/60Hz sine wave)
• DCV…60V Accuracy：±5% of full scale
• Rated measuring current …1～1.2mA
• Battery …6LR61(9V)×1(included) size …99(W)×43(D)×144(H)mm
• Weight …About 310g
• Accessories …Test Lead,Carrying case
• With pin cap
