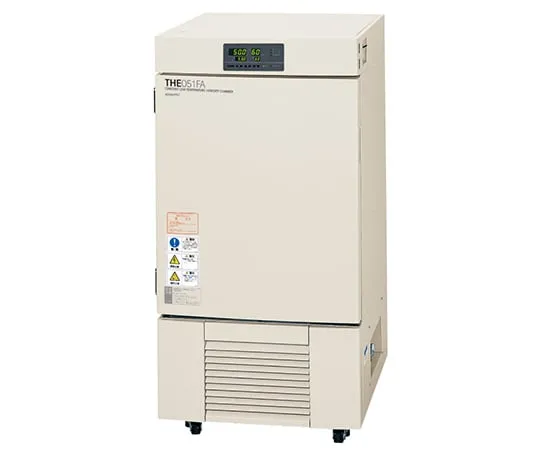

Spec

• Operating temperature range: -10 °C, to 80 °C
• Temperature Adjustment Precision: ± 0.5 °C at 20 °C
• Temperature distribution accuracy: ± 2 °C at 20 °C
• Temperature rise time: 90 minutes or less R.T. → 80 °C
• Temperature fall time: 120 minutes or less R.T. → -10 °C (50Hz)
• Humidity Range: 20 %RH, to, 95 %RH
• Humidity Adjustment Precision: ± 3, %RH
• Humidity Distribution Precision - ± 6 %RH
• Ambient operating temperature: 5 °C, to 35 °C
• Temperature and humidity controller: Microcomputer PID control (HTC-S system)
• Operation type : Fixed value Operation
• Temperature and humidity sensor: platinum resistance thermometer Pt 100 Ω (dry/wet bulb detection system)
• Heating Heater: Wire Strip Heater
• Humidification Heater: Stainless Steel Sheath Heater
• Freezer: 180 W R 134 a
• Blower Fan: Propeller Fan (Aluminum)
• Interior: SUS304
• Door: Double Door (Inner Door tempered glass) Silicone Rubber Packing * Can be Changed to Fluororubber
• Safety device: Self-diagnosis function (Overheating, Temperature/Humidity Sensor Disconnection, Empty Heating), indep***ent overheat prevention device, control circuit overload protection f***, refrigerator high voltage switch, water cut off alarm, water level detection, overcurrent and leakage breaker
• External output signal terminals: temperature (DC1V, to 5V), humidity (DC1V, to 5V), alarm output (contact signal)
• inner dimension : W 500 mm x D 400 mm x H 600 mm
• external dimensions : W 640 mm x D 750 mm x H 1,270 mm
• Internal Volume: Approximately 120 L
• Shelf Bracket pitch: 50 mm
• power supply (50Hz/60Hz): AC100V 20 A
• Required power supply Equipment: AC100V 30 A
• Mass: about 150 kg
• Accessories: shelf board 2 pieces, Shelf Bracket 4 pieces, Separate 10 L Water Tank 1 piece (Connector Cable 1 piece for Tank Float), Water Hose 1 piece, Bamboo Shoot Nipple 2 pieces, Vinyl Hose for Drainage 3 pieces, Horseband 3 pieces, Gauze for Humidity Sensor 2 pieces, Level 1 piece, Fixed metal bracket for Floor 4 pieces, Spanner 1 piece
