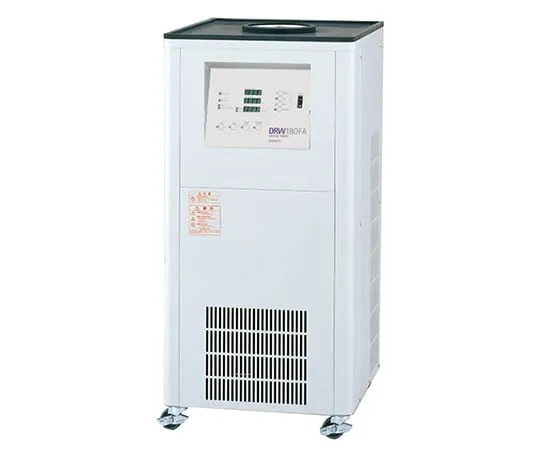

63-1238-07 Freeze dryer DRW180FA
Product Description
Product Model: 63-1238-07Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1238-07
Product Brand: ADVANTEC
Features
- Multipurpose unit type for small volume samples.
- This is a versatile unit type freeze dryer that can be ***d in any combination of separately sold multi-purpose tubes and dry chambers.
Spec
- Trap cooling temperature: -80 °C
- Trap dehumidification capacity: Approx. 1 L/time
- Ambient operating temperature: 5 °C, to 35 °C
- Refrigerator: 400 W x 2 R 404 A/R 23
- Operation Configuration : Auto Mode Operation , Manual Mode Operation
- Vacuum Gauge: Pirani Vacuum Gauge
- Interior: SUS304
- Safety device: Self-diagnosis function (temperature sensor disconnection), refrigerator overload prevention device, refrigerator protection device, overcurrent/leakage breaker
- Trap tank inner size: φ 153 x H 225 mm
- external dimensions : W 450 mm x D 550 mm x H 935 mm
- External Output Signal Terminal: Temperature/1 °C/mV, Vacuum/1 Pa/mV
- External power supply Port: For vacuum pumps/Max.6A, Driver Chamber/Max.2A
- Vacuum Mouth: outer diameter 17.5 mm
- power supply (50Hz/60Hz): AC100V 12 A (does not include capacity, the external power supply outlet)
- Required power supply Equipment: AC100V 15 A
- Mass: about 67 kg
