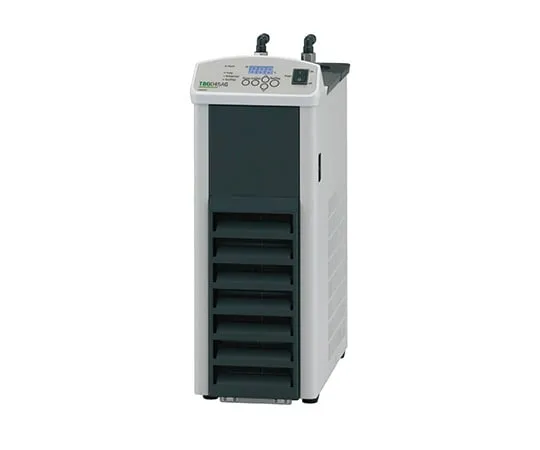

Spec

• Circulation system: External closed system
• Operating temperature range: -20 °C to R.T. (temperature settings range -20 °C to 30 °C)
• Temperature adjustment precision: ± 2 °C (setting -20 °C, to 0 °C), ± 1 °C (setting 0 °C, to 20 °C)
• pumps ability maximum flow rate: 9 L/min (50Hz), 10 L/min (60Hz)
• pumps ability Maximum lifting height: 4.2 m (50Hz) 5.6 m (60Hz)
• Cooling: ability (50Hz): Approx. 450 W (387 kcal/h) at Liquid Temperature 10 °C, Approx. 310 W (266 kcal/h) at Liquid Temperature -10 °C * Display: ± of ability 10%
• Ambient operating temperature: 5 °C, to 35 °C
• temperature controller: Digital setting/display, ON/OFF control of refrigerator
• Temperature Sensor: Platinum Temperature Measuring Resistor Pt 100 Ω
• Freezer: 450 W R 404 A
• Cooling Coil: Copper-Nickel-Plated
• Inner tank: SUS304
• Safety device: Self-diagnosis function (Overheating, overcooling, and temperature sensor disconnection), refrigerator protection device, refrigerator overload prevention device, overcurrent/leakage breaker
• external dimensions : W 205 mm x D 405 mm x H 547 mm
• tank inner capacity (when full of water): about 3.2 L
• External Circulation Port: outer diameter 10 mm
• power supply (50Hz/60Hz): AC100V 8A
• Required power supply Equipment: AC100V 15 A
• Mass: about 28 kg
