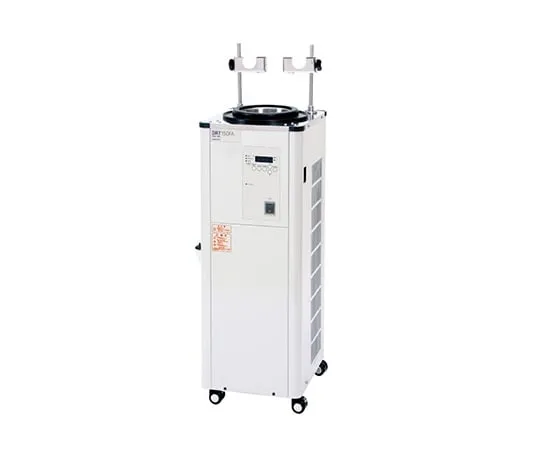

63-1237-92 Cold trap DRT180FA
Product Description
Product Model: 63-1237-92Product Brand: ADVANTEC Featur […]
Contact Us
Product Details
Product Model: 63-1237-92
Product Brand: ADVANTEC
Features
- Features a variety of new features, including digital display of trap temperature.
- Prevents moisture from being sucked into a vacuum dryer or freeze dryer.
Spec
- Trap cooling temperature: -80 °C
- Trap Dehumidification capacity: Max.1L (Water)
- Ambient operating temperature: 5 °C, to 35 °C
- Chiller: Air Cooled 450 W x 2
- Coolant: HFC Single Side R 404 A Dual Side R 23
- Interior: SUS304
- Safety device: Self-diagnosis function (temperature sensor disconnection), refrigerator overload prevention device, refrigerator high voltage switch, overcurrent/leakage breaker
- Trap tank inner size: φ 153 x H 225 mm
- external dimensions : W 330 mm x D 470 mm x H 838 mm
- Trap tank internal volume: about 3.9 L
- Vacuum Hose Connection Port: outer diameter 17.3 mm
- Vacuum Mouth: outer diameter 17.3 mm
- power supply (50Hz/60Hz): AC100V 13 A
- Required power supply Equipment: AC100V 20 A
- Mass: about 60 kg
