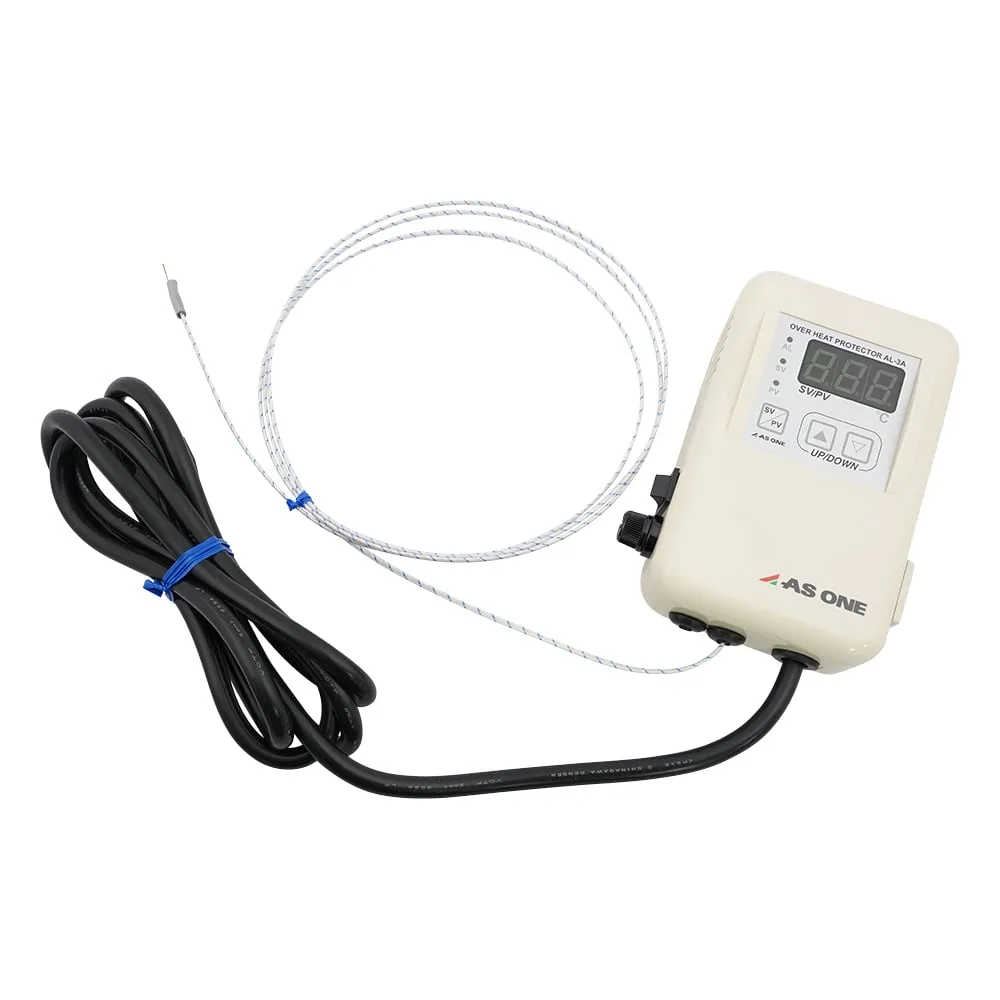

1-2995-21-20 Excess Temperature Rise Prevention Device/Alarm Generator Main Body with Calibration Certificate AL-3A
Product Description
Product Model: 1-2995-21-20Product Brand: AS ONE Corpor […]
Contact Us
Product Details
Product Model: 1-2995-21-20
Product Brand: AS ONE Corporation
Features
- It can be hung on a wall and takes up little space!
- If the temperature exceeds the set temperature, the power is turned off and does not return even after the temperature has decreased (temperature rise prevention function).
- Turns on a separately connected alarm or lamp according to the set temperature (alarm generation function).
- Can be hung on a device or wall for compact ***.
- With round terminal type temperature sensor that is easy to fix to the object.
Spec
- Setting range (deg. C): 0 ~ 999 deg. C * 1
- Minimum Display Units (deg. C): 1
- Display accuracy: +/- 0.5% rdg +/- 1 dgt or +/- 3 degrees C (without sensor error)
- Operation: Lamp on/Internal relay on/off (switchable)
- Temperature Sensor: K-type thermocouple
- Output method: Voltage output by relay contact
- *1 The included sensor has a heat resistant temperature of 200 degrees, so the factory setting range is adjusted to 0 ~ 200 degrees. You can change the setting range according to your sensor specifications.
- *Do not connect any inductive load device (motor, pump, etc.) directly to the instrument.
- Calibration points are 2 points for temperatures of 25 degrees Celsius and 80 degrees Celsius. If you would like additional points, please contact us separately.
