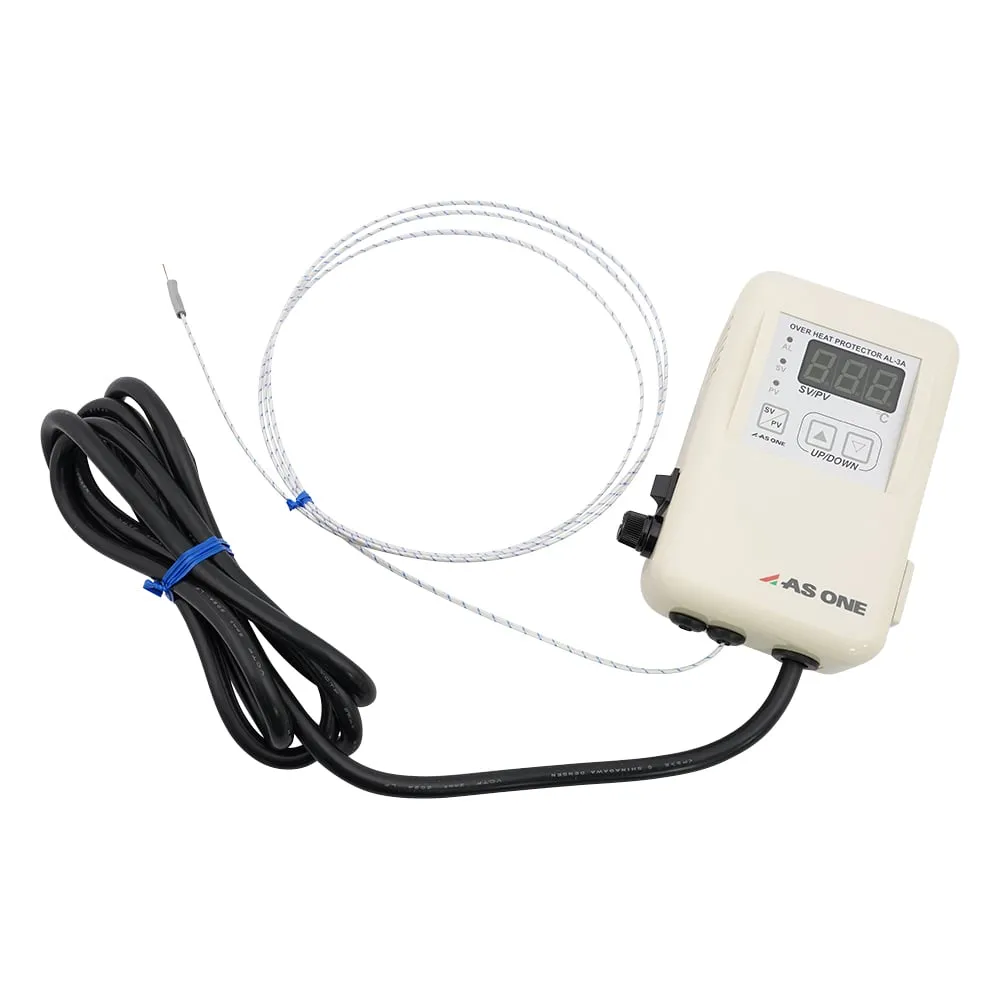

1-2995-21 Excessive temperature rise prevention device and alarm generator main body AL-3A
Product Description
Product Model: 1-2995-21Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-2995-21
Product Brand: AS ONE Corporation
Features
- It can be hung on a wall and takes up little space!
- If the temperature exceeds the set temperature, the power is turned off and does not return even after the temperature has decreased (temperature rise prevention function).
- Turns on a separately connected alarm or lamp according to the set temperature (alarm generation function).
- Can be hung on a device or wall for compact ***.
- With round terminal type temperature sensor that is easy to fix to the object.
Spec
- Setting Range (degrees C): 0 to 999 ° C * 1
- Minimum display unit (degrees C): 1
- Display accuracy: ± 0.5% rdg ± 1 dgt or ± 3 ° C (Without sensor error)
- Operation: Lamp ON/Internal Relay ON/OFF (Switchable)
- Temperature Sensor: K Thermocouple
- Output method: Voltage output by relay contact
- *1 Beca*** the heat-resistant temperature of the attached sensor is 200 ° C, the preset range is adjusted to 0 to 200 ° C. You can change the setting range according to your sensor specifications.
- *Do not connect inductive load devices (Motor pumps, etc.) directly to the tester.
