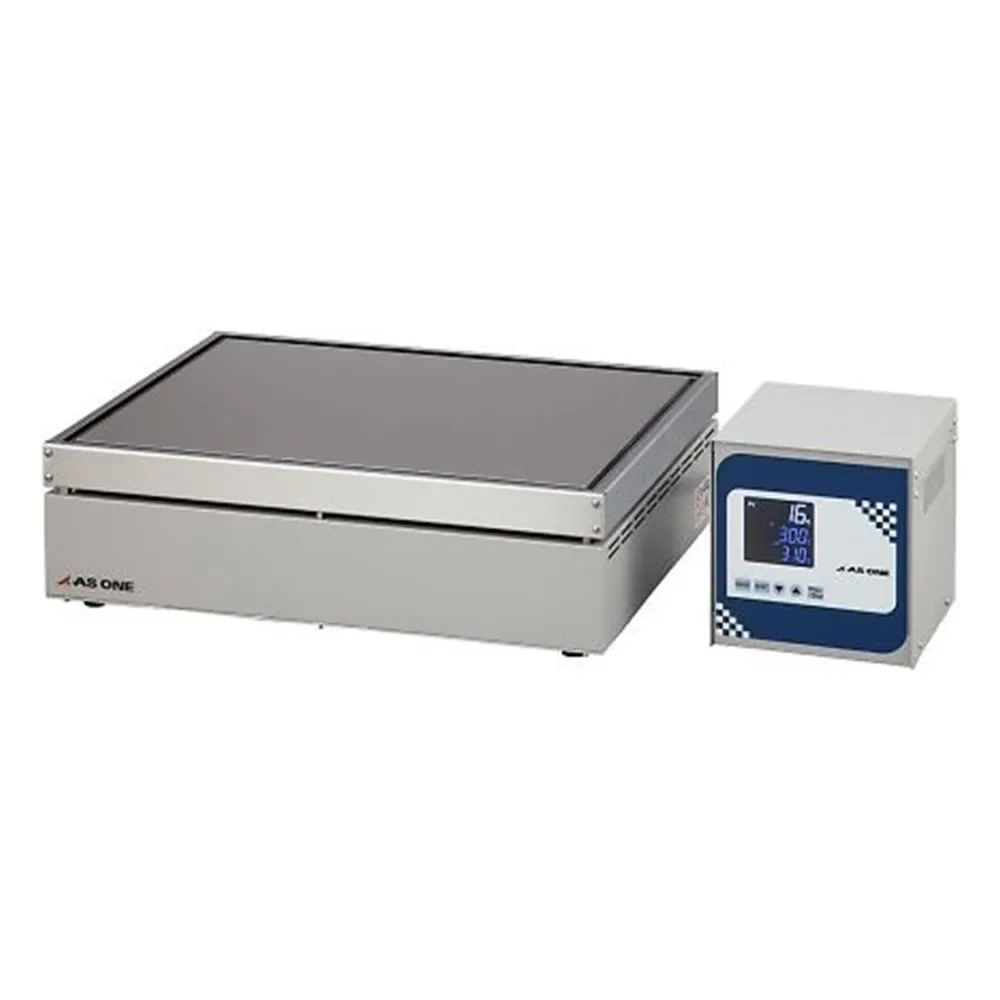

4-2546-01 EC Hot Plate (External sensor support) Main Unit EC-1200N2
Product Description
Product Model: 4-2546-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2546-01
Product Brand: AS ONE Corporation
Features
- By installing a separate sensor, it is possible to control the object on the plate while measuring it.
- Equipped with digital setting type over temperature rise prevention, the over temperature rise prevention temperature can be optionally set.
- There are four types of timers (ON timer, OFF timer, ON/OFF timer, SV start).
Spec
- Specifications: Body
- Maximum temperature (degrees C): 300
- Plate Size (mm): 412 x 312
- Temperature Control Method: PID Control
- power supply : AC100V 50/60 Hz max . 1 kW
- power cord : 1.8 m (3P Plug)
- Controller Size: 152 x 183 x 168 mm
- Plate material - Aluminum
- Weight: about 11 kg
- Load tolerance : about 15 kg (Distributed Load on 80% Plate Area)
- Safety Function: Digital Setting Type Excess Temperature Rise Prevention Function, Overcurrent F***, Burnout Mechanism
- connecting terminals: M3.5 terminal strips
