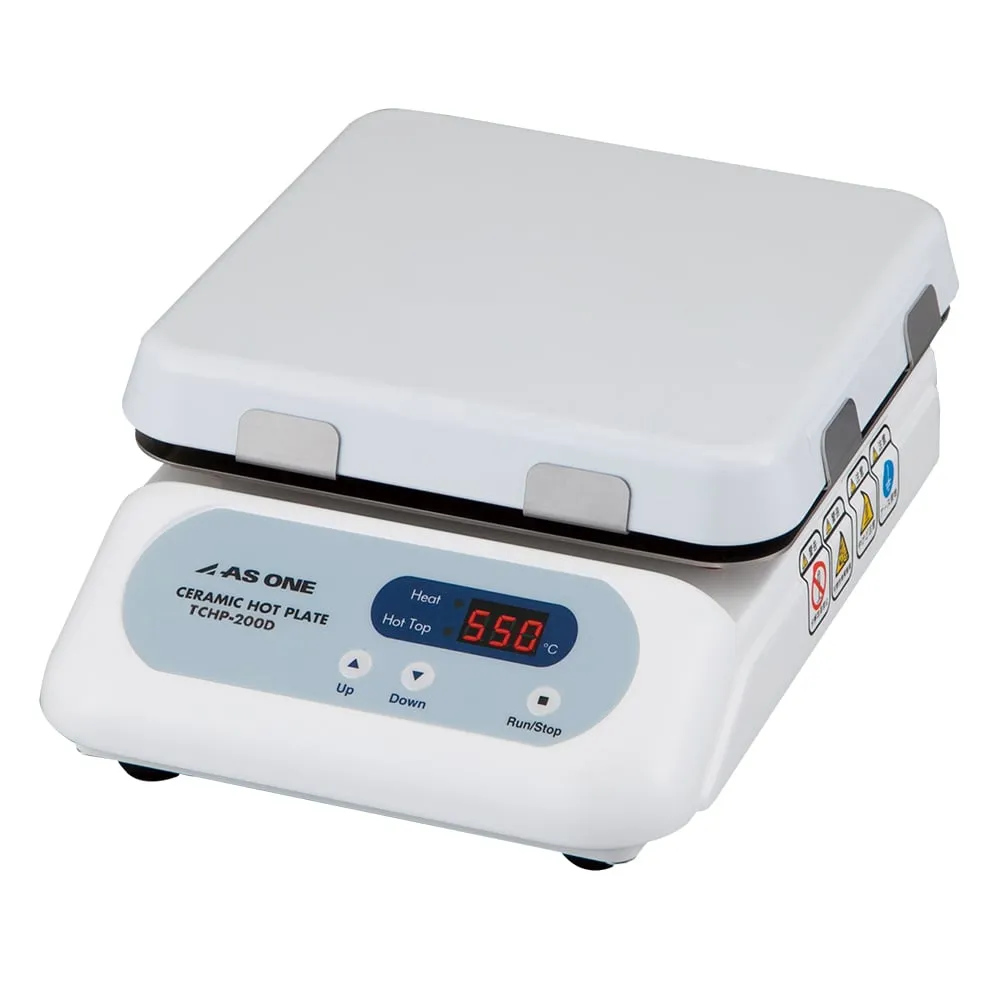

4-2088-01 Ceramic Hot Plate TCHP-200D
Product Description
Product Model: 4-2088-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-2088-01
Product Brand: AS ONE Corporation
Features
- A frameless plate type is added to the popular ceramic hot plate lineup.
- Temperature can be set by button input (10 °C unit) in digital specifications.
- Ceramic glass plate has excellent heat and chemical resistance.
- Can be ***d for high temperature heating up to 550 °C.
- When the top plate becomes hot, the warning lamp will light.
Spec
- Maximum temperature (degrees C): 550
- main unit size (mm) : 202 x 293 x 102
- Plate Size (mm): 184 x 184
- Body Weight: Approx. 3.5 kg
- configuration types: digital
- material : Plate/Ceramic , Body/Aluminum Die-Cast (heat resistant coating)
- Temperature Control Method: PID Control by K class thermocouple
- Heater capacity: 1000 W
- Operating Temperature: 100 ° C to
- Safety Device: Overcurrent F***, Internal Temperature F***, High Temperature Warning Display Function
- power supply: AC100V 50/60 Hz 3P Plug
