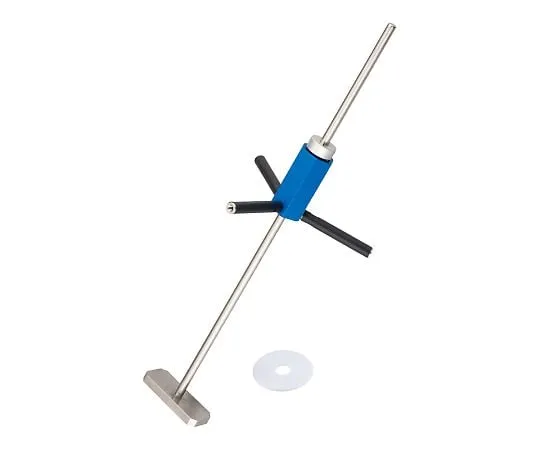

4-1725-01 Magnetic stirring unit for VOLTEGA VP-YG1
Product Description
Product Model: 4-1725-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1725-01
Product Brand: AS ONE Corporation
Features
- Magnet type stirring unit dedicated to VOLTEGA. Suitable for samples where rotor wear is a concern.
- It is assumed that a 2 L beaker of about φ 135 mm is ***d.
- The VP-YG1P (extension bar) sold separately can be ***d for up to φ 300 x 300 mm containers.
- VOLTEGA with a motor of 15 W or more enables stirring of medium and high viscosity.
- Since the shaft diameter is 8 mm, it is also possible to add a tornado stirring blade (1 -5505 - * *).
- Stirring unit using magnetic force of Stirrer
Spec
- external dimension (mm) : Φ 170 x 410
- Weight (kg) : 0.6
- Stirring Method: Rotational Stirring with Magnetic Transfer Force from stirrer (Assume 2L beaker)
- material : Body/Aluminum (alumite treatment)/SUS304 , Magnet Base/SUS430
- Magnet: Type/Neodymium x 2 pieces (0.22 T), Magnet pitch/43 mm, Polar/NS
- Heat-resistant Temperature: 80 ° C
- Accessory: Hex Wrench 1 piece
- *special order with samacova magnet specification can also be created.
