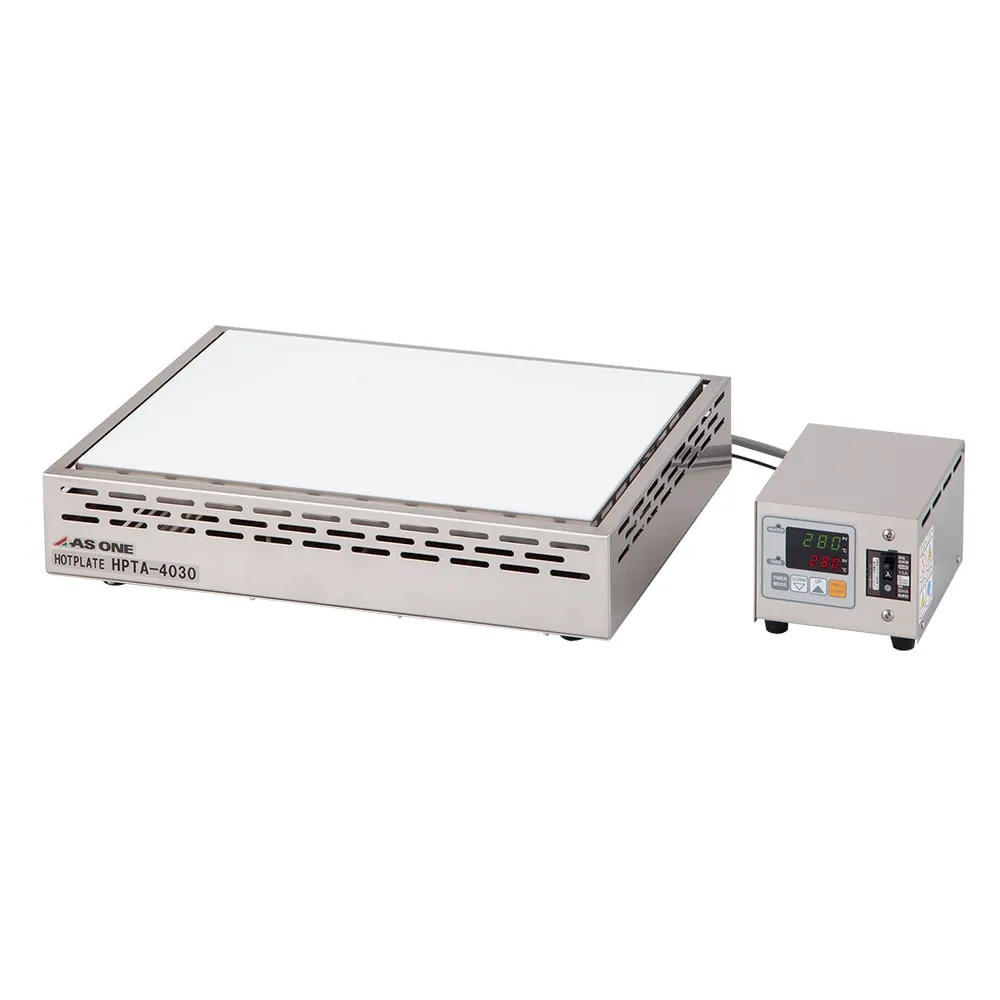

4-1723-01 Draft Hot Plate HPTA-4030
Product Description
Product Model: 4-1723-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1723-01
Product Brand: AS ONE Corporation
Features
- It is a hot plate with chemical and acid resistance considered for each component, assuming that it is ***d in a draft.
- The temperature controller is separate and can be pulled out from the draft.
- The housing is SUS 316, the top plate is fluorine coated, the internal wiring is fluorine coated, and the heater is Incoloy 800 to reduce deterioration due to erosion ca***d by the atmosphere.
- An earth-leakage breaker is ***d to reduce the risk of earth-leakage due to erosion, etc.
- A hot plate with enhanced chemical resistance.
Spec
- Maximum temperature (degrees C): 280
- Plate Size (mm): 400 x 300
- material : Body/SUS316 , Control Part/SUS304 , top board/Aluminum + Ceramic Coating (Containing Fluorine Plastic)
- Size: Main Unit: 440 x 340 (Dimensions 347 including bumps) x 105 mm, Control Unit: 120 x 160 (Dimensions 175 including bumps) x 103 mm
- Weight: Main Unit: Approx. 10 kg, Control Unit: Approx. 1.7 kg
- Heater: Sheath Heater 1400 W
- temperature controller : Display accuracy ± 2% , PID control , Temperature adjustment timer (0 to 99 hours 59 minutes, with device stop function)
- sensors: K class thermocouple
- Safety device: Ground fault circuit breaker 15 A
- power supply : AC100V 50/60 Hz power cord (3P Ground Cord 2.5 m)
- Maximum Power Consumption: 1450 W
- Cable length between units: 2 m on the hot plate side/1 m on the control part side, 3 m in total
- *It ***s durable parts, but it does not guarantee corrosion resistance.
- *This unit is not explosion-proof.
