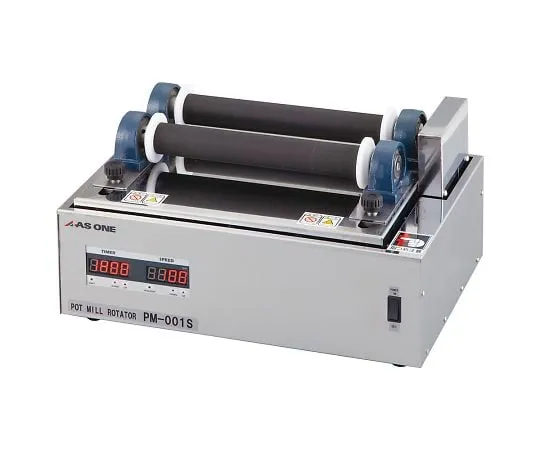

4-1718-01 Pot Mill Stand 1 piece Hook with Seesaw Function PM-001S
Product Description
Product Model: 4-1718-01Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 4-1718-01
Product Brand: AS ONE Corporation
Features
- Since the number of revolutions can be adjusted, it is possible to grind according to the sample.
- Roller spacing can be adjusted according to the pot mill.
- With seesaw function, stirring efficiency is high.
- With seesaw function to enhance stirring and mixing ability!
Spec
- Specifications: 1 piece Hanging
- Size (mm): 432 x 310 x 231
- Weight (kg) : about 20
- Stirring Method: Seesaw Stirring (± 3 °) + Rotating Stirring
- rotation speed : 40 to 280 rpm
- Seesaw: 1 seesaw round trip for 2 roller revolutions
- Roller Size: Φ 38 x 255 mm
- Roller pitch: 76 to 132 mm
- motors: induction motors
- Applicable Pot Mill: Size/Φ 90 to 180 mm, Weight/10 kg (including contents)
- Timer setting: 0 to 9 hours 59 minutes (1 Minute Units)
- power supply : AC100V 50/60 Hz about 2.5 m (3P Plug)
