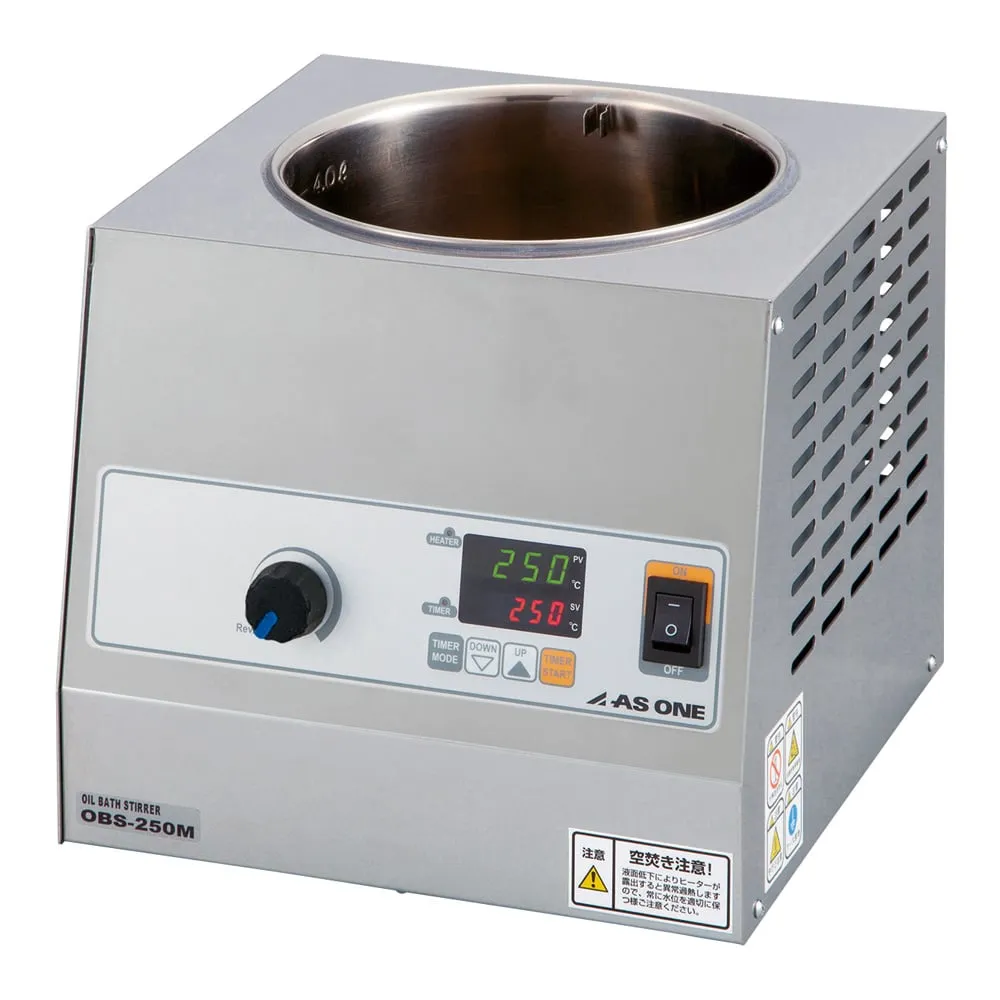

2-7939-22 Oil Bath Stirrer OBS-250M
Product Description
Product Model: 2-7939-22Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 2-7939-22
Product Brand: AS ONE Corporation
Features
- PID control enables high-precision and stable temperature control.
- Built-in stirrer allows stirring while heating sample or heating medium.
- The operation switch is panel waterproof (IP67 compatible).
- A series of boxed baths with built-in water tanks and a lineup for 250 degrees Celsius has been added!
Spec
- external dimension (mm) : 260 x 266 (290) * 1 x 241
- tank inner size (mm) : Φ 180 x 180
- temperature settings range: R.T. + 5 to 250 ° C
- Temperature Adjustment Accuracy: ± 2 ° C
- Heater capacity: Sheath Heater 750 W
- temperature sensors: K class thermocouple
- Temperature Control Method: Microcomputer PID Control
- rotation speed : 100 to 1200 rpm
- Timer setting range: 0 to 99 hours 59 minutes
- Safety Device: Excess Temperature Rise Prevention Device, Overcurrent Prevention F***
- material: Body/duckboard/SUS430, Tank/SUS304, Stirring duckboard/Stainless Steel (SUS304 430) and Others
- power supply: AC100V 50/60 Hz 800 W
- power cord length : 2.5 m (3P Plug)
- water tank capacity: 4L
- Mountable thermometer size: Φ7 to Φ 10 mm
- Body Weight: Approx. 5.5 kg
- Accessories: Stirrer (φ8 mm x 30 mm) x 1 piece
- *duckboard is not included.
- *When directly stirring the sample, do not *** an duckboard but *** a container smaller than Φ 100 mm.
- *1 () Including protrusion
