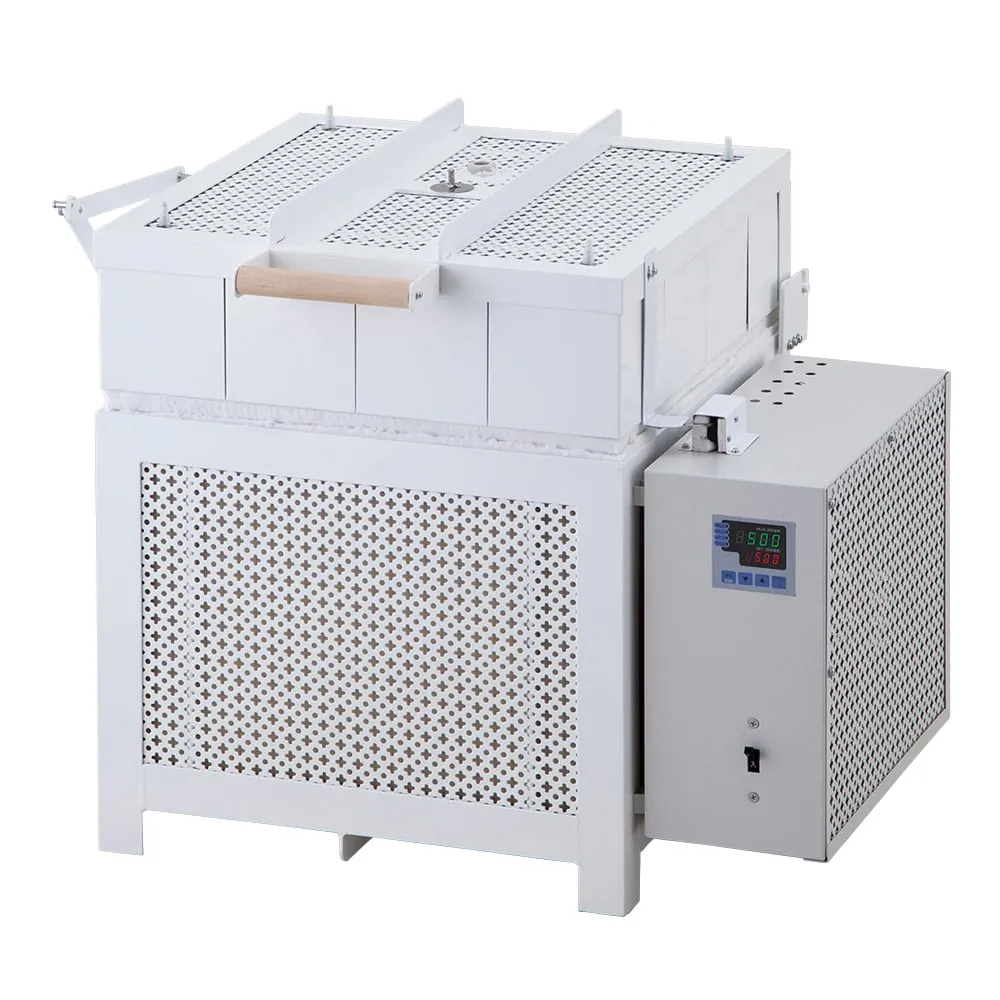

1-5929-02 Programmed Crucible Furnace RMF-250
Product Description
Product Model: 1-5929-02Product Brand: AS ONE Corporati […]
Contact Us
Product Details
Product Model: 1-5929-02
Product Brand: AS ONE Corporation
Features
- It has an upper opening and closing type for easy insertion and removal of the crucible.
- Since a wide range of temperature settings are possible, it can be ***d for material (metal and inorganic compounds) testing, heat treatment, etc.
- The temperature rises quickly, reaching the maximum temperature (1200 degrees Celsius) in about 50 minutes.
- Up to 4 patterns of 16 step programs can be set, and the temperature rise rate can also be set.
- Upper door type for easy access
Spec
- external dimension (mm) : 625 x 560 x 575
- Furnace inner size (mm): 240 x 240 x 230
- temperature settings range: 100 to 1200 ° C
- Temperature Setting resolution: 1 ° C
- Maximum Service Temperature: 1200 ° C
- Temperature Control Method: PID Control SSR Output
- sensors: R class thermocouple
- Heater capacity: 4 sides of canthal heater (all sides) Total 3000 W
- Program function: 16 steps, 4 patterns
- Time setting range: 0 minutes to 99 hours 59 minutes (1 Minute Units)
- inner capacity: about 13.2 L
- Safety Mechanism: Sensor Abnormality Detection/Temperature Setting Linked Excess Temperature Rise Prevention Relay/No-F*** Breaker
- material: Exterior/Furnace/Fireproof Insulation
- power supply 200 VAC 50/60 Hz
- power cord length : 2 m (3P Plug)
- Plug Shape: RMF -100 /, RMF -250 /
- Weight: about 46 kg
- *Furnace inner size includes sensor prongs.
- *Shipping, delivery, installation and assembly costs are required separately. Please contact us.
