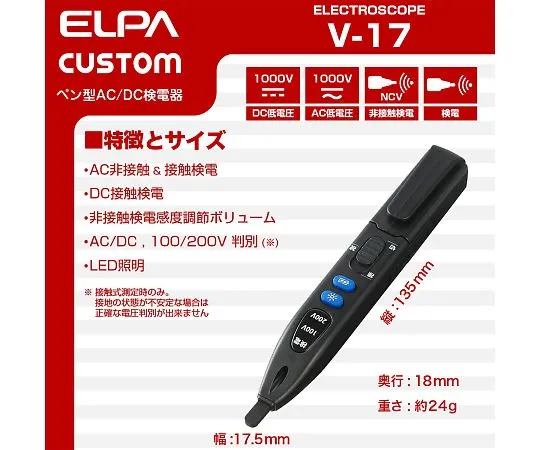

62-8579-88 Electrostatic Pen 100/200 V V-17
Product Description
Product Model: 62-8579-88Product Brand: ELPA Features I […]
Contact Us
Product Details
Product Model: 62-8579-88
Product Brand: ELPA
Features
- It is a pen type galvanometer that checks the current status of non-contact type (AC) and contact type (AC) easily.
- Comes with a volume that allows sensitivity adjustment during non-contact measurement.
- With AC100V/200 V voltage discrimination function. (Only during contact type measurement.). Accurate voltage determination is not possible when the ground condition is unstable. )
- Comes with LED light which is convenient in the dark.
Spec
- Contact-type Voltage Detection Range: 7 VAC to 1000 V
- Contactless Voltage Detection Range: 30 VAC to 1000 VAC
- Indicator: Detector LED: 30 VAC when in contactless mode, lights up when voltage of to 1000 V is detected 100 V LED: 7 VAC when in contact mode, lights up when voltage of to about 125 V is detected 200 V LED: 125 VAC when in contact mode, lights up when voltage of to 1000 V is detected
- Sensitivity Adjustment Function: The sensitivity of the detection voltage can be adjusted by the volume on the back of the main unit (chisel enabled in contactless mode).
- insulation Voltage : 2000 VAC/1 Minute (Detection unit to switch)
- Lighting Function: The LED light can be turned on/off each time the LED button is pressed.
- Operating Temperature and Humidity: 0 ° C to + 40 ° C, 75 %RH or Less (However, there shall be no condensation.)
- Storage Temperature and Humidity: -10 ° C to + 50 ° C, 75 %RH or Less (However, there shall be no condensation.)
- power supply : LR 44 button battery X 2 pieces (built-in for testing)
- external dimensions ( approx . ) : W 17.5 x H 132 x D 18 (mm)
- Mass: about 24 g (Including battery)
