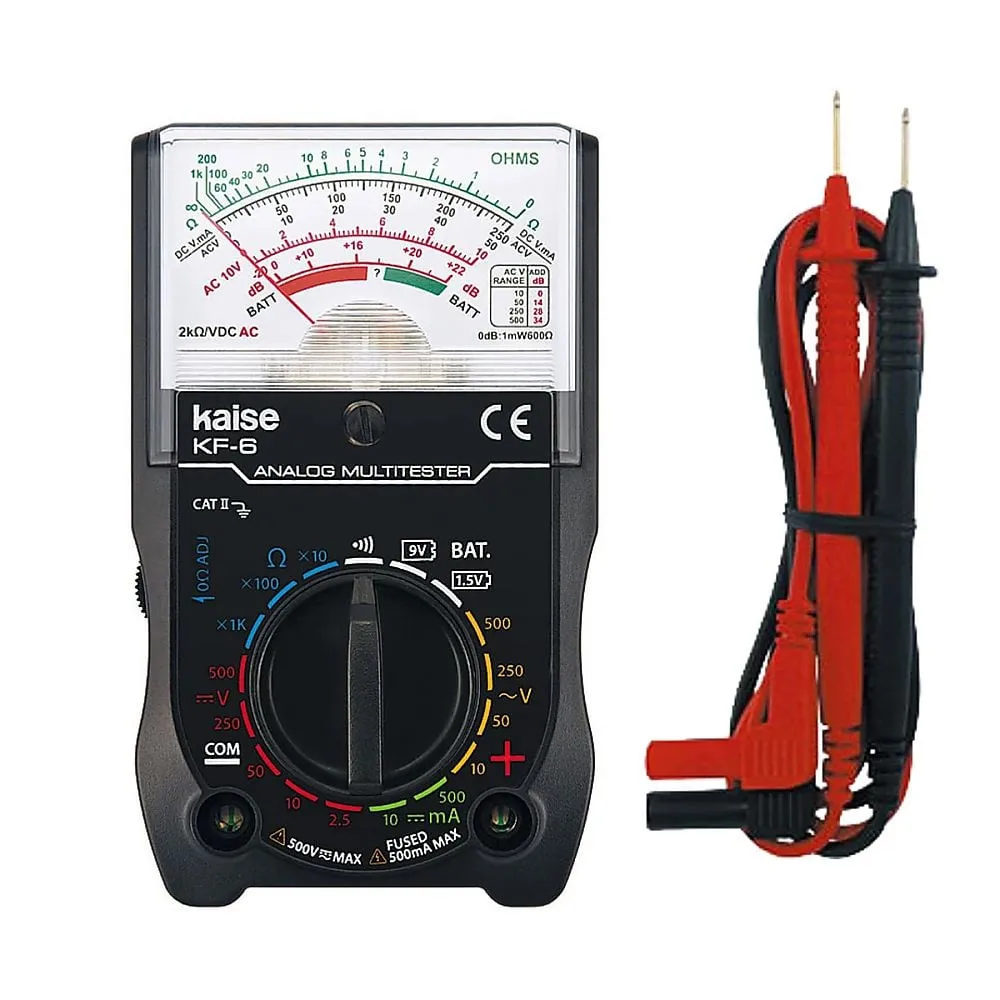

62-8579-82 Analog mini tester KF-6
Product Description
Product Model: 62-8579-82Product Brand: ELPA Features Y […]
Contact Us
Product Details
Product Model: 62-8579-82
Product Brand: ELPA
Features
- You can easily check the energization by the buzzer sound.
- 1.5 V and 9 V batteries can be checked.
Spec
- DC Voltage: 2.5 V/10 V/50 V/250 V/500 V
- AC voltage: 10 V/50 V/250 V/500 V
- DC current: 10 mA/500 mA
- Resistance: X 10 (10 kΩ)/X 100 (100 kΩ)/X 1K (1 MΩ)
- Energization Test: Approx. 100 Ω or Less
- battery check: 1.5 V/9 V
- Low Frequency Output: -20 to 56 dB
- Accessory: 1 Set of Test Leads, AA size battery 1 piece (built-in for testing), Spare F*** 0.5 A 250 V 1 piece, Owner's Manual
