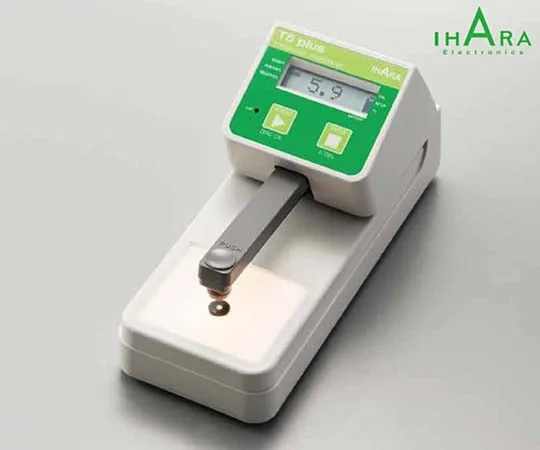

62-8143-03 Portable black and white transmission densitometer T5plus
Product Description
Product Model: 62-8143-03Product Brand: Ihara Electroni […]
Contact Us
Product Details
Product Model: 62-8143-03
Product Brand: Ihara Electronic Industries
Features
- If the value is different from that measured by a densitometer manufactured by another company, correction can be applied. • Small, portable, high performance (can measure up to 6.0 density) • Compatible with measurement of transmission density, positive net%, negative net%, and transmittance. • Easy operation • Accuracy can be confirmed with a confirmation film.
Spec
- External Dimensions: 251 mm (D) x 103 mm (W) x 125 mm (H)
- Light Table Dimensions: 80 mm (W) x 70 mm (D)
- Arm Depth: 185 mm
- Weight: approx. 1.2 kg
- Power Supply: AC Adapter/9 V-500mA, Internal Nickad Battery/4.8 V
- Measuring Diameter: φ3 mm, φ2 mm, φ1 mm
- Measurement range: Transmittance/0.00D to 6.0D, Transmittance/100% to 0.0001%, Net%/0.0~100.0%
- Repeatability: ±0.01D (at < 4.0D, φ3 mm Aperture)
- Optical: ANSI PH2.19 (Specular-Diff***)
- filter characteristics: Visual
- light sources: halogen lamps
- Photodetector: Filter-enclosed photodiode
- External communication: RS-232C(9,600bps, 8bits of data, no parity, 1bit stop)
- Warm-up time: None
- Accuracy: ±0.02D (at < 4.0D, φ3 mm Aperture)
- Display: LCD8 characters
- Guaranteed operating temperature: 5~40°C
- Equipped with fringe correction function
- Equipped with measurement value correction function
- Equipped with power on/auto power off function by any key operation
