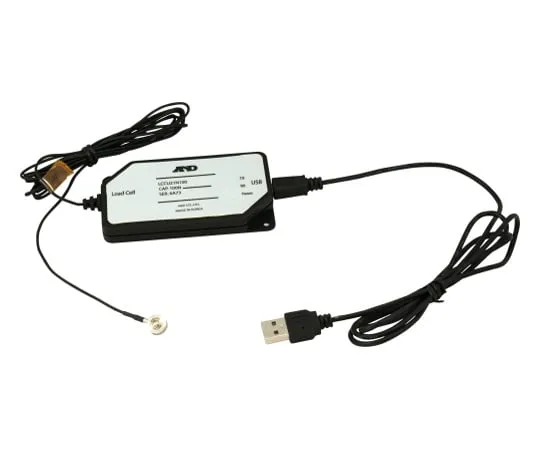

62-7020-47 Button type USB compatible Digital load cell LCCU21N100-JA
Product Description
Product Model: 62-7020-47Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-7020-47
Product Brand: A&D
Features
- Compact and lightweight compression type digital load cell for force measurement.
- Easy measurement by connecting to a computer with a USB cable.
- Ideal for load distribution measurement, press fitting and pressure change measurement.
- Cell mounting bracket and USB cable included.
- A&DBy downloading and using the measurement software "WinCT-DLC" from the homepage, the measurement data can be easily checked by computer.
Spec
- rating capacity (mass): 100 N (10.20 kg)
- rating Power: 100.00 ± 0.50 (0.5%)
- Natural Frequency (Reference, Load Cell chisel): 45 kHz
- Overall error: 0.5% of R.O.
- Power Supply: Voltage DC 5 V (USB bus power), Average consumption current 50 mA or less (reference value)
- Standard accessories: Mounting holder, USB cable, Owner's Manual
