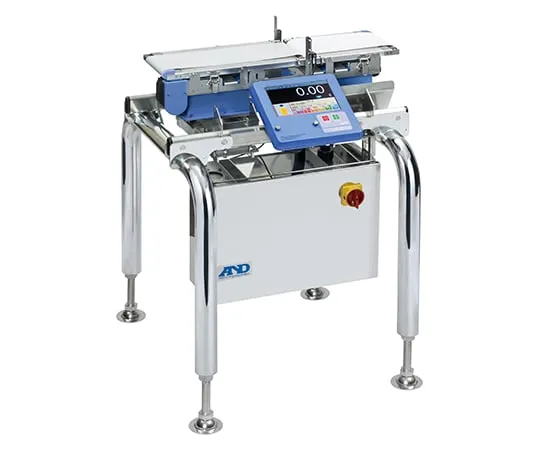

62-6085-37 Weight Checker AD-4961-600-1224
Product Description
Product Model: 62-6085-37Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-6085-37
Product Brand: A&D
Features
- With a newly designed digital load cell unit and a control box equipped with a CPU capable of high-speed processing, a high sorting accuracy (3σ) of 0.08 g has been achieved.
- 7-inch color touch panel.
- You can import images from a USB flash drive.
- Can be washed with water.
- Optimized Measurement Settings: By entering the number of processes (units/min) or the belt speed (m/min), the optimal measurement conditions are automatically set, enabling highly reproducible measurement selection.
- History function: Ethernet communication makes it easy to connect to external devices (PC, printer, PLC, etc.).
Spec
- Weighing: 600 g
- Minimum display: 0.01 g
- Selection accuracy (3 σ): 0.08 g (highest value). It depends on the selected product.)
- Maximum Selection ability: 400 pcs/min
- Conveyor Belt Width: 120 mm
- Conveyor Captain: 240 mm (the introduction conveyor was 360 mm)
- Transport Method: Urethane Belt
- Belt speed: 15 to 120 m/min
- Measurement Dimensions: Length 22 to 200 mm, Width 120 mm or less
- Mass sensor: Electrical resistance wire load cell
- Display: 7-inch touch panel color LCD (WVGA)
- Procedure: Touch Panel (Resistor Film Type), Key Switch
- Number of registered varieties: 1,000 (10 groups x 100 varieties)
- Communication functions: ModbusTCP, ModbusRTU (RS 485), RS 232 C (switching to RS 485), TCP, IP (for connecting postscript-enabled printers), USB (USB memory, for data storage and image loading, for connecting to postscript compatible printer)
- general purpose external input: 4 non-voltage contact inputs
- general purpose external output: relay contact output: 8 points
- dust control waterproofing specifications: IP 65 compliant
- Operating temperature and humidity range: -5 to 40 °C, humidity 85% or less (non-condensing)
- Power Supply: Single-phase AC100 to 240 V (+ 10%, -15%), 50/60 Hz, approx. 180 VA power supply connection terminal block (M4), power supply cable not included.
- External dimensions: (W) 602 mm, (D) 660 mm, (H) 713 to 863 mm
- Weight: approximately 35 kg
- Material:
- Display: ABS Plastic
- Conveyor: Aluminum (alumite Treated), Stainless Steel, PP Plastic
- Measuring Part: Stainless Steel, PP Plastic
- Control: Stainless Steel, PP Plastic, PE Plastic
- Leg: Stainless Steel
- *Installation adjustment fee and shipping fee will be charged separately.
- *We need to discuss the specifications before delivery.
- *power supply cable is not included.
