Digital Products

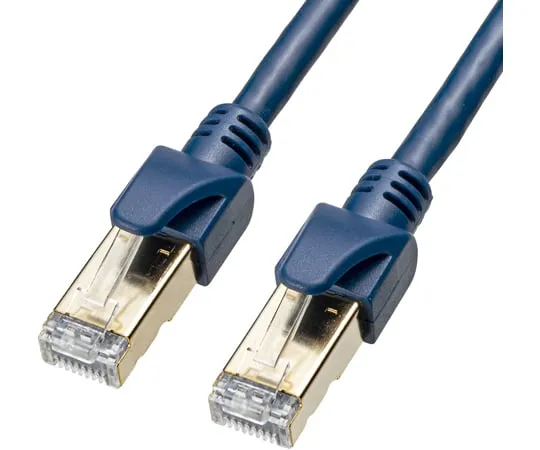

67-9316-27 Category 6 A Solder Industrial LAN Cable Navy Blue 0.5 m KB-H6A-005NV
Product Description
Product Model: 67-9316-27Product Brand: SANWA SUPPLY IN […]
Contact Us
Product Details
Product Model: 67-9316-27
Product Brand: SANWA SUPPLY INC.
Spec
- Color: Navy Blue
- Cable length: 0.5 m
- Connector Shape: RJ-45 Shielded Connector (with Cover to Prevent Folding of Claws)
- *Shielded connector ***d for UTP.
- Cable structure: UTP, stranded (24AWG), straight-through
- Cable diameter: 6.2 mm
- Supported transmission bands: Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compliant
- Shape Type: Standard Type
- 10Gbps
- Frequency response: 500 MHz
- Inspection: 100% continuity inspection, 100% fluke inspection, 100% low resistance precision measurement
- *Due to the structure of the plug, some transmission characteristics (FLUKE NEXT) may not meet the conventional values due to soldering, but we have not confirmed any deterioration in actual communication performance.
- Geometric Type: Round Cable
- Number of Cable Cores: 8 Cores (4P)
- cable sheaths: PVCs
- color wires: TIA/EIA-568B
- connections in connectors: auto-soldering
- Temperature range: – 20~80°C
- Flame Retardant: Flame Retardant Material Used
