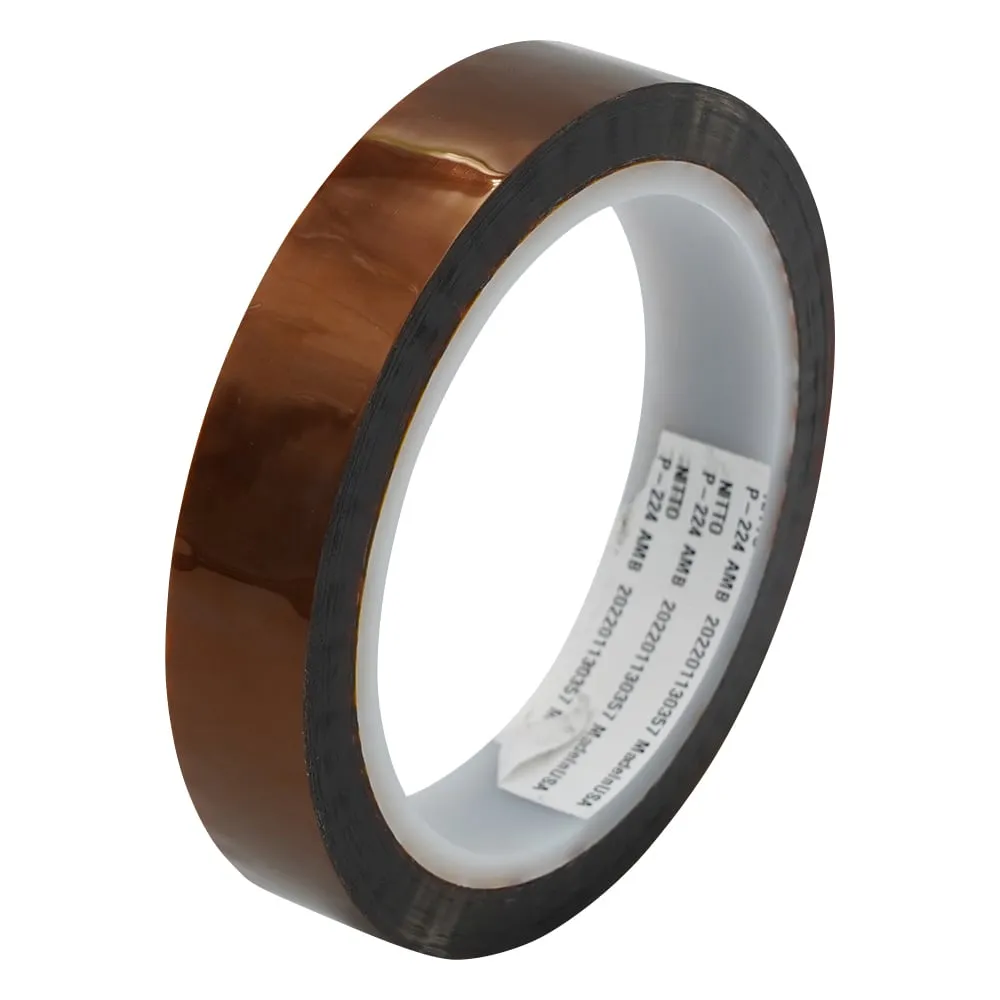

5-5018-06 Kapton Tape 0.064 x 19mm x 33m P-224
model:
5-5018-06
category:
dissectiontoolsandsupplies
Product Description
Product Model: 5-5018-06 Features For bonding of high h […]
Contact Us
Product Details
Product Model: 5-5018-06
Features
- For bonding of high heat resistant wires, insulation of high frequency motors and traction motors, exterior insulation of bobbin coil and thermistor components, and temporary stopping of electronic components during vacuum deposition.
Spec
- Material: Base material/PI (polyimide), Adhesive/acrylic
- Allowable temperature limit: 155℃ (continuously)
- Insulation resistance: 1 x 10^6MΩ
- Withstand voltage: 7000V
- Flame retardant: UL standards E20392
- Model number: P-224
- Thickness: 0.064mm
- Width x length: 19mm x 33m
- RoHS3 (EU)2015/863 Certificates can be issued
