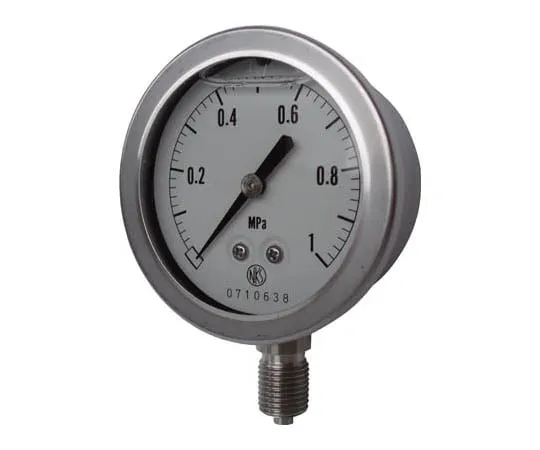

62-3399-32 glycerin-filled Pressure Gauge GV5012315.0MP
Product Description
Product Model: 62-3399-32Product Brand: NAGANO KEIKI Co […]
Contact Us
Product Details
Product Model: 62-3399-32
Product Brand: NAGANO KEIKI Co., Ltd.
Features
- Excellent corrosion and atmosphere resistance due to stainless steel wetted part and case material.
- This instrument is a pressure gauge dedicated to vibration, which suppresses vibration of the moving part by immersing the internal mechanism in the filling fluid, and also prevents wear of the internal link mechanism to facilitate maintenance.
Spec
- Number of Pieces: 1
- Pressure range (MPa): 0.0~15.00
- Minimum Scale (MPa): 0.500
- Accuracy: ±1.5% FS
- Case Shape: A
- Size (mm): 60
- Connection Size: G1/4B
- Material/Finish: Bourdon Tube: Stainless Steel (SUS316), Stock: Stainless Steel (SUS316)
- Securities Code: 434-9661
