Electronic/Electrical Parts and Controll Equipments

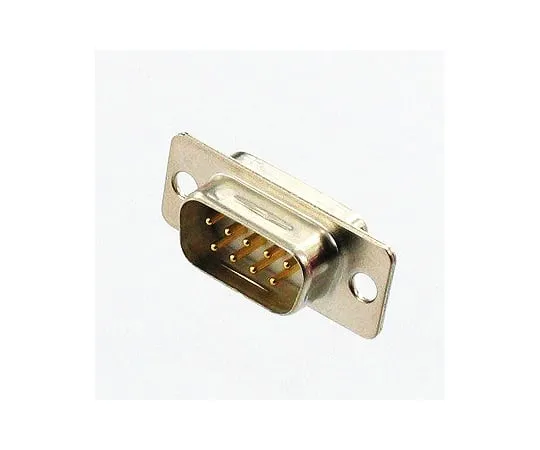

63-3046-31 D-SUB connector XM3A-0921
model:
63-3046-31
brand:
OMRON Corporation
Product Description
Product Model: 63-3046-31Product Brand: OMRON Corporati […]
Contact Us
Product Details
Product Model: 63-3046-31
Product Brand: OMRON Corporation
Features
- D-SUB 9-pin connector - Male. You can *** XM2S-0913 as a case.
Spec
- Connector form: male
- Number of pin: 9 pin
- rating: 300 VAC -5 A
- Contact resistance: 15 mΩ or less
- insulation resistance : 1000 Mω or more (500 VDC)
- Withstand voltage: 1000 V AC
- Operating temperature range: -55 ° C to + 105 ° C
- Quantity : 1 piece
- Total insertion force: No. of poles × 3.33 N or less
- Removal force of single unit: 0.29 N or more (At φ 0.99 mm gauge)
- Shield effect (electric field method): Panel-mounted: 25 dB or higher (30 to 900 MHz), Substrate-mounted: 20 dB or higher (30 to 300 MHz)
