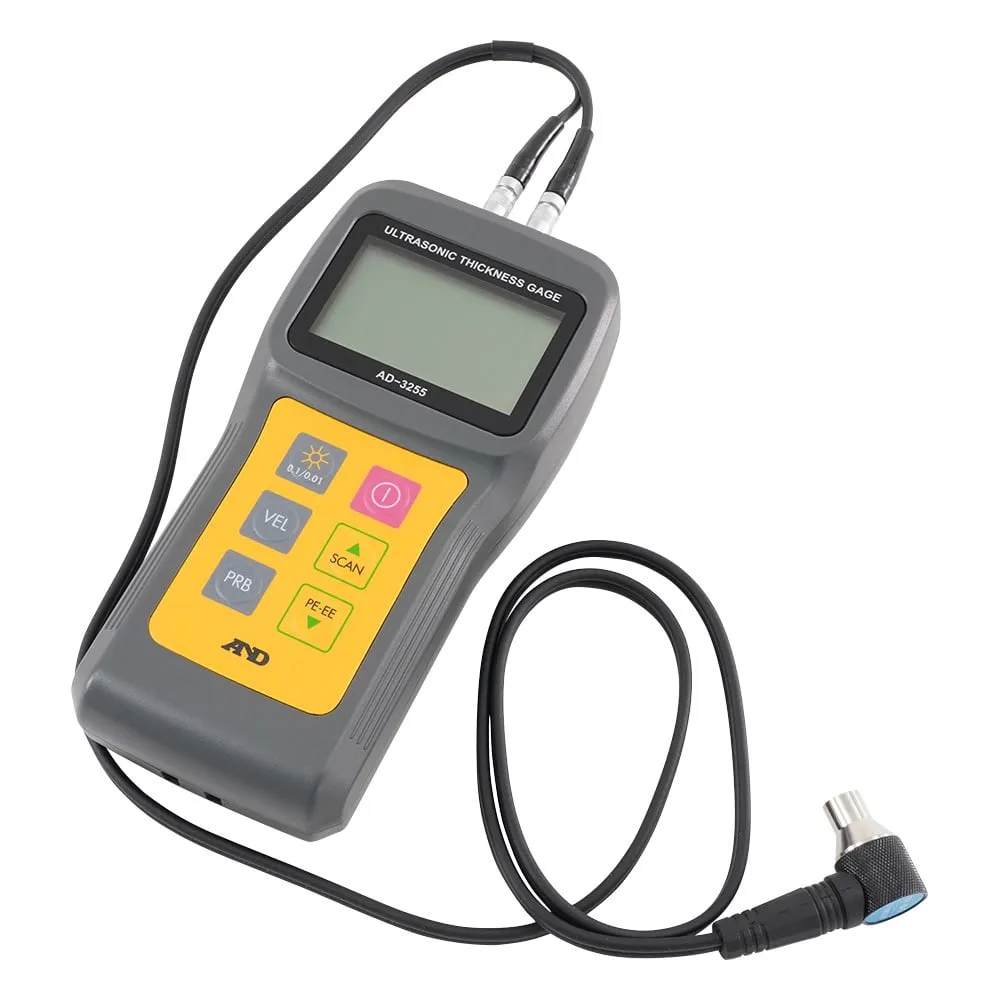

62-3150-61 Ultrasonic Thickness Meter AD-3255
Product Description
Product Model: 62-3150-61Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3150-61
Product Brand: A&D
Features
- [Application]
- For thickness measurement of a wide range of materials such as metal, glass, plastic, ceramic, and epoxy
- [Features]
- 1 device covers a wide measurement range 0.8~300 mm
- 0.01 mm display resolution (0.01/0.1 mm display switchable)
- Scan mode for measuring a wide range of minimum thickness
- 3 types of probes can be used depending on the application, and the probes can be replaced (Standard Probe AD-3255-02 Included, Others Sold Separately)
- Thickness measurement is possible beyond the paint (AD-3255-04 (sold separately) required)
- Probe 0 point adjustment is possible. 4mm Equivalent Specimen Included
- Speed of sound can be adjusted
- Coupling status can be displayed and contact status can be checked
- Backlight function (easy to see even in a dark environment)
- Power supply is 2 AA alkaline batteries (sold separately)
- Battery level indicator
- Auto power off function
Spec
- standard probe
- Measurement method: Ultrasonic pulse reflection method
- Frequency of measurement: Single point mode/7 times/sec, scan mode/16 times/sec
- External dimensions : ( W ) 73 x ( D ) 32 x ( H ) 143mm
- Measurement range (pulse eco-mode):
- *7MHz probe, for AD -3255 - 02 (standard attached probe): 0.8 to 200.0mm
- *5MHz probe, for AD -3255 - 03 (optional probe): 1.0 to 300.0mm
- 5MHz probe, for AD -3255 - 04 (optional probe): 2.0 to 300.0mm
- Accuracy of measurement:. + -. 0.1mm ±0.5% (Measuring range: 0.8 to 50.0mm),. + -. 0.1mm ±1.5% (Measuring range: 50.1 to 300.0mm)
- *The performance and accuracy of the measurement depend on the state of the workpiece surface.
- Accuracy guarantee temperature range: 5 to 40 ℃
- Variable speed range: 1000 to 9999 m/s
- Display range: 0.65 to 600.0mm
- Display Resolution: 0.01 mm/0.1mm selected (However, 200.1mm and above are displayed as resolution/0.1 mm.)
- Power supply : AA size battery x 2 pieces (Sold separately)
- Size: 73 x 32 x 143mm
- Weight : about 160g (excluding battery)
- Accessories: 7MHz probe (AD -3255 -02), 4mm equivalent specimen (AD -3255 -01), carrying case strap, empty bottle for contact medium
