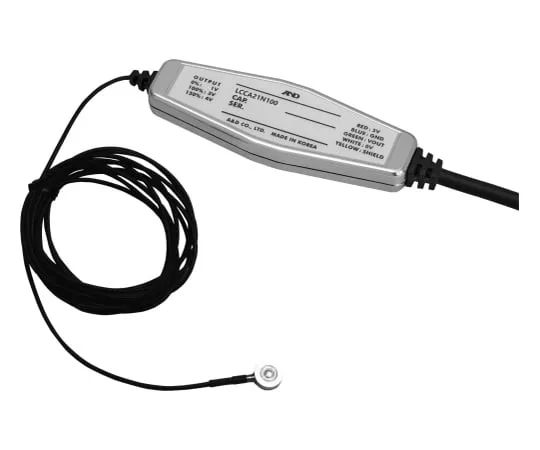

62-3150-57 Load Cell LCCA 21 N 100 with Button Type Amplifier LCCA21N100-JA
Product Description
Product Model: 62-3150-57Product Brand: A&D Feature […]
Contact Us
Product Details
Product Model: 62-3150-57
Product Brand: A&D
Features
- Compression type load cell for force measurement with analog output with amplifier.
- Can be ***d for various purposes such as load distribution measurement and press pressure measurement. In addition, the voltage output is easy to connect to the A/D converter of personal computer peripheral devices.
- Cell Mounting Bracket, Amp Case Mounting Bracket Included
- Dustproof Waterproof IP64 Equivalent (Load Cell Only).
- Cable thickness/length: From load cell to amplifier φ2/2m, from amplifier φ6/0.5 m
Spec
- External dimensions: (W) 40 x (D) x (H) 100 mm
- rating, capacity: 100 N (10.20 kg)
- Maximum permissible overload: 150% ofR.C.
- Overall error: 0.5% ofR.O. power supply Voltage: DC 5 V ± 0.25 V power supply Current consumption: 16 mA or less Load resistance: 5 kΩ or more Natural frequency (reference value): 45 kHz Body mass: about 65 g
- Accessories: Mounting holder, Amp case holder, Instruction manual
