Features

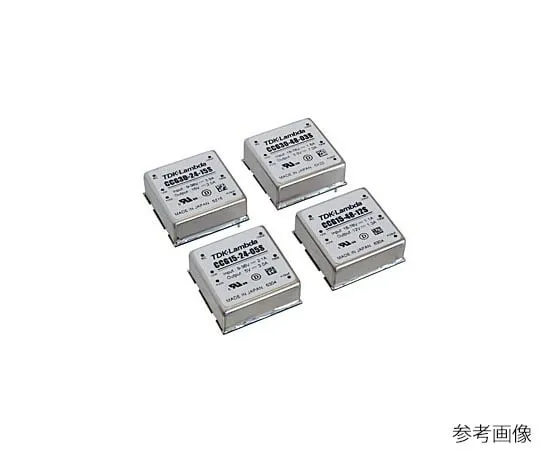

• A 30 W onboard DC-DC converter in a compact 1 x 1 inch configuration. The mounting area is about 50% smaller than the company's previous products. It has a six-sided shield structure considering noise, and the bottom surface as well as the metal case is shielded by the substrate copper foil. There are two input voltage ranges: 9 V to 36 V and 18 V to 76 V.
• Line-up
• CCG30-24-03S/CCG30-24-05S/CCG30-24-12 S/CCG30-24-15 S
• CCG30-48-03S/CCG30-48-05S/CCG30-48-12 S/CCG30-48-15 S
• Main specifications
• Model CCG30-24CCG30-48
• Input voltage 9~36VDC18~76VDC
• Type name 03S05 S12S15S03S05S12S15S
• Output voltage (V) 3.3512153.351215
• Efficiency (%) 8689898987909091
• Output current (A) 7.06.02.52.07.06.02.52.0
• Output power (W) 23.130.030.030.023.130.030.030.0
• Output voltage variable range -10 - +10%
• Operating ambient temperature -40 - +85°C
• Power resistance voltage input - Output: DC1500V 1 minute
• Input/output - Case: DC1000V 1 minute
• Safety standard UL60950-1, CSA60950-1, EN60950-1
• Free warranty period 5 years
