62-0956-11 Compressor Drain Treatment Equipment (Baby Joker) 25L KBJ-05
Product Description
Product Model: 62-0956-11Product Brand: IAC Features Th […]
Contact Us
Product Details
Product Model: 62-0956-11
Product Brand: IAC
Features

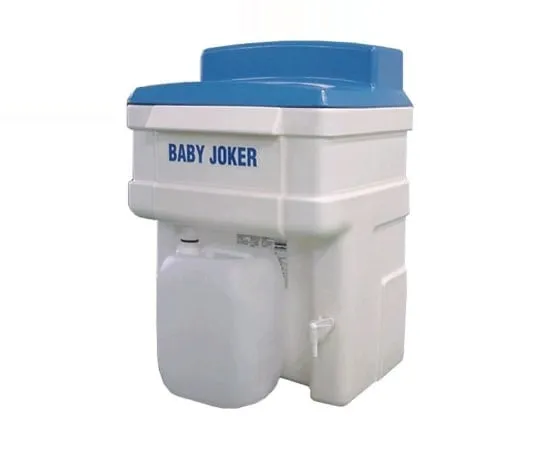

- The name is Baby Joker.
- This is a treatment device for drain water discharged from air compressors and air dryers.
- Since no power supply is required and there is no working section, there is no ca*** of malfunction.
- It is a simple installation that connects the drain water inlet to the treated water outlet.
- The oil film that comes up can be collected with the container that comes with this device, and requires no effort.
- The replacement activated carbon is bag type and can be easily replaced.
- Activated charcoal bags are replaced once a year. (Average value after delivery)
Spec
- Model number: KBJ-05
- Name: (Baby joker)
- Adaptive compressor: 5.5kW or less
- Average processing flow rate: 0.75L/H
- Processing method: Floated oil removal processing + activated charcoal intake absorption processing
- Wastewater oil concentration: 5ppm or less
- Size: 345 x 320 x 555mm
- Dry weight: 8.5kg
- Inlet connection port size: 1/2 inch screw
- Outlet connection port size: 1/2 inch screw
- Device capacity: 25L
- Floated oil tank content: 3L
- Clogging confirmation: No
- Ambient temperature range: 0 - 50℃*avoid direct sunlight when ***d outside.
- Manufactured in Germany
