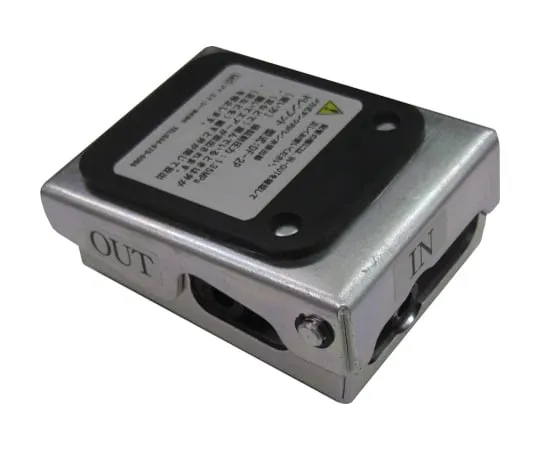

62-0956-03 Mechanical Drain Water Ejector DF-2P
Product Description
Product Model: 62-0956-03Product Brand: IAC Features Th […]
Contact Us
Product Details
Product Model: 62-0956-03
Product Brand: IAC
Features
- This is a drain for drain water that accumulates in the compressor tank.
- Drain water can be discharged without getting your hands dirty.
- It is discharged only while you step on it.
- The water contact part is stainless steel and resistant to corrosion.
- Easy to collect in combination with a drain bottle.
- Ideal for small compressors such as our company YC series and PC series.
- Drain water recovery bottle: Recomm***ed for *** with DB-1000.
Spec
- Model number: DF-2P
- Operation system: Normally closed return type
- Number of ports: 2 ports
- Tube connection port size: IN/OUT both φ6 one touch joint
- Fluid ***d: Water, Compressed air
- Operation pressure range: 0 - 0.9MPa
- Guaranteed resistance to pressure: 1MPa
- Operating temperature range: 0 - 60℃
- Main material: Mild steel (zinc plating) wetted part is stainless steel
- Size: 90 x 74 x 39mm
- Weight: 370g*drain water collection bottle Recomm***ed in combination with DB-1000.
Related product recommendations
You may also be interested in the following products
laboratoryinstruments
laboratoryinstruments
1-4601-41 Hot Plate (NINOS) 300℃ 400 x 300mm ND-3LA
model: 1-4601-41
brand: AS ONE Corporation
laboratoryinstruments
1-5469-41-22 Cooling Water Circulation System with Pre-Shipment Inspection LTC-450
model: 1-5469-41-22
brand: AS ONE Corporation
laboratoryinstruments

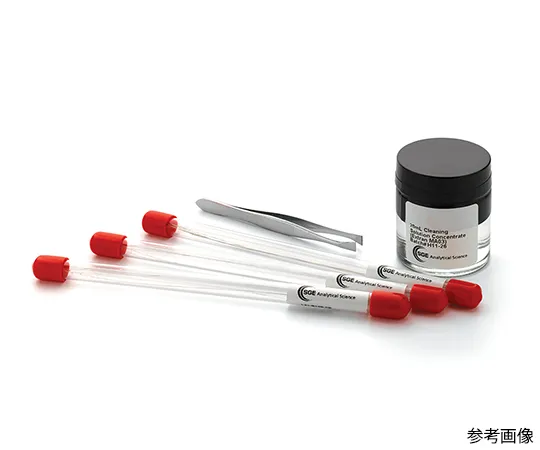

63-5596-59 ［Discontinued］Needle Cleaning Kit NCK NEEDLE CLEANING KIT 031782
