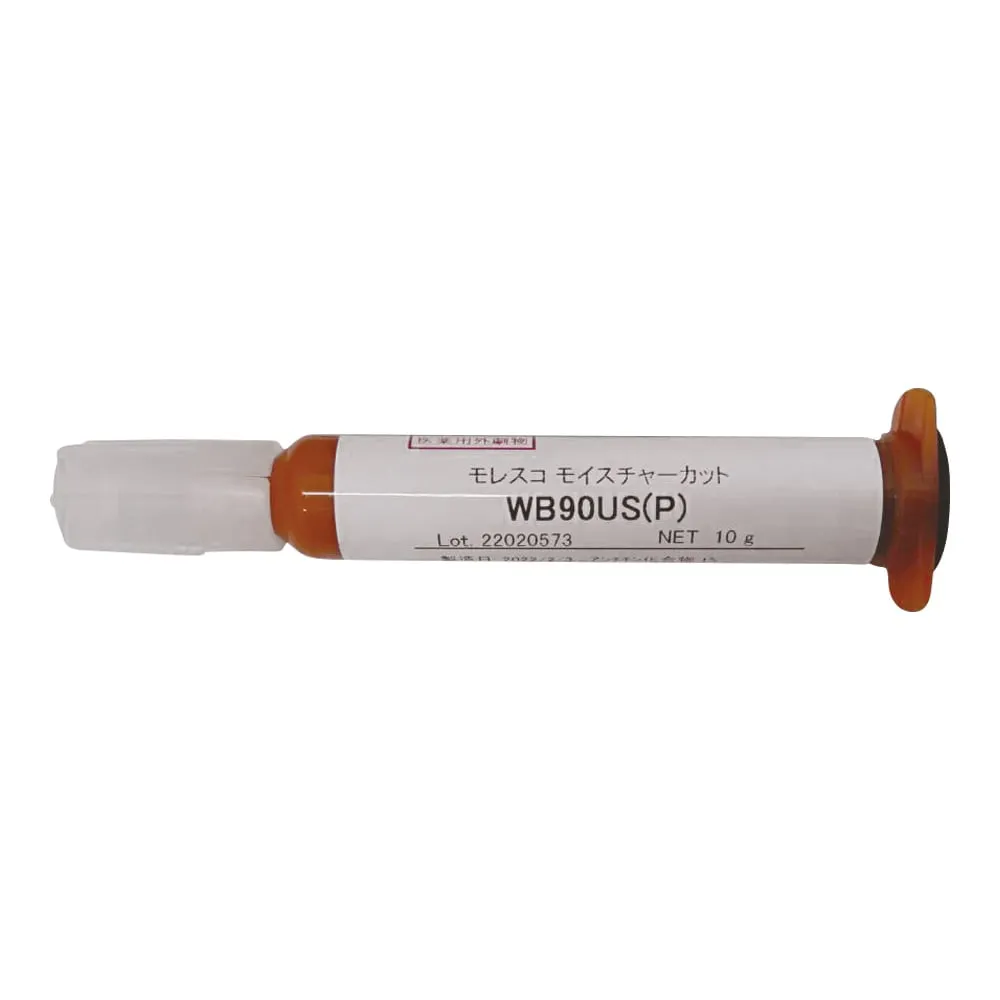

4-4645-01 Adhesive for organic devices Moss Moisture Cut 10 g WB90USP
model:
4-4645-01
category:
dissectiontoolsandsupplies
Product Description
Product Model: 4-4645-01 Features Ultraviolet (UV) -cur […]
Contact Us
Product Details
Product Model: 4-4645-01
Features
- Ultraviolet (UV) -curable adhesive for organic devices.
- Excellent high water vapor barrier properties (Water and moisture resistance) and high adhesion.
Spec
- Quantity: 1 (10 g)
- Capacity (g): 10
- Material: Epoxy resin composition
- Viscosity: 200 Pa s
- Thixo ratio: 4.5
- Water vapor transmission after curing: < 3.7 g/m 2 (day)
- Outgas after curing: < 20 ppm
- Glass transition temperature after curing: 120 degrees C
- Curing conditions: 6 J/cm 2 + 80 degrees C x 1 hour
- UV light source: High-pressure mercury lamp, metal halide lamp (main wavelength: 365 nm)
-
The Fire Service Act：
Category IV Inflammable Liquids (Petroleums, Alcohols)
Class IV Petroleums
Hazardous Rank3
